The HMC647ALP6E is a 6-bit digital phase shifter chip with a rated frequency range of 2.5 GHz to 3.1 GHz, providing 360-degree phase coverage with an LSB of 5.625 degrees. The HMC647ALP6E features extremely low RMS phase error of 1 degree across all phase states and extremely low insertion loss variation of 0.4 dB to ±0.5 dB. This high-precision phase shifter is controlled via 0/5 V positive control logic. The HMC647ALP6E is housed in a compact 6 mm x 6 mm plastic leadless SMT package, internally matched to 50 Ω, requiring no external components.

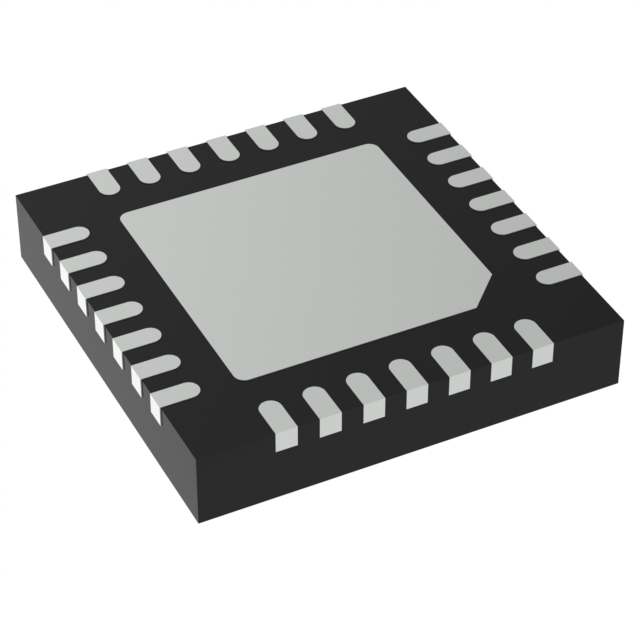

HMC647ALP6E: 2.5 GHz to 3.1 GHz, 6-bit digital phase shifter chip, QFN-28

Model: HMC647ALP6E

Package: QFN-28

Type: Digital phase shifter

HMC647ALP6E Product Attributes:

Function: Phase shift

Frequency: 2.5 GHz to 3.1 GHz

RF Type: Radar

Mounting Type: Surface Mount

Package/Case: 28-VQFN Bare Pad

Supplier Device Package: 28-QFN (6x6)

HMC647ALP6E Product Features:

Low RMS Phase Error: 1 degree

Low Insertion Loss: 4 dB

High Linearity: 54 dBm

Positive Control Logic

360-Degree Coverage, LSB = 5.625 Degrees

Die Size: 3.85 mm x 1.90 mm x 0.1 mm

28-Pin QFN Lead-Free SMT Package: 36 mm²
