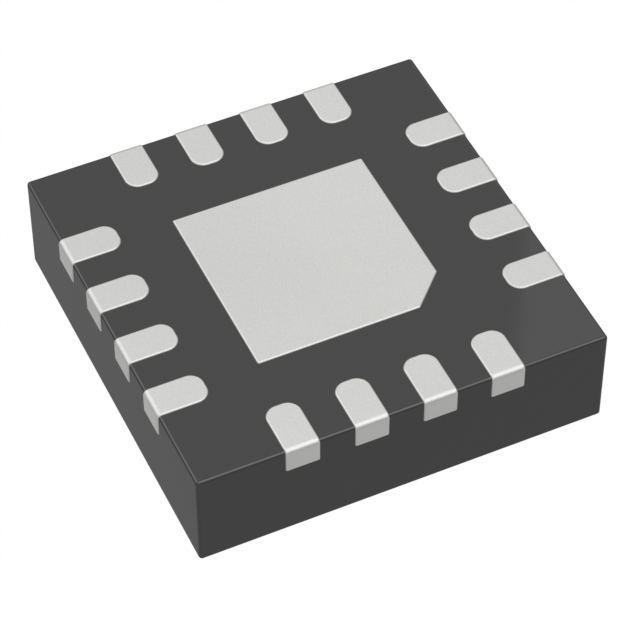

ADF5002BCPZ [ADI] 4 GHz to 18 GHz, 8-division, prescaler, LFCSP-16

The ADF5002BCPZ prescaler is a low-noise, low-power, fixed RF frequency divider module designed to divide frequencies up to 18GHz down to lower frequencies suitable for input to PLL ICs such as the ADF4156 or ADF4106. The ADF5002BCPZ offers 8-division functionality, operates on a 3.3V power supply, and features differential 100Ω RF outputs that can be directly connected to the differential RF input interfaces of PLLs such as the ADF4156 and ADF4106.

ADF5002BCPZ Product Features:

8-stage prescaler

High operating frequency: 4GHz to 18GHz

Integrated RF decoupling capacitors

Low power consumption

Active mode: 30 mA

Power-saving mode: 7 mA

Low phase noise: −150 dBc/Hz

Single DC power supply: 3.3 V, compatible with ADF4xxx PLLs

Temperature range: −40°C to +105°C

Small package: 3 mm × 3 mm LFCSP

ADF5002BCPZ Applications:

PLL frequency range extender

Point-to-point radio

VSAT radio

Communication test equipment
