HMC1133LP5E: 4.8 GHz to 6.2 GHz, GaAs MMIC 6-bit digital phase shifter, QFN-32

Model: HMC1133LP5E

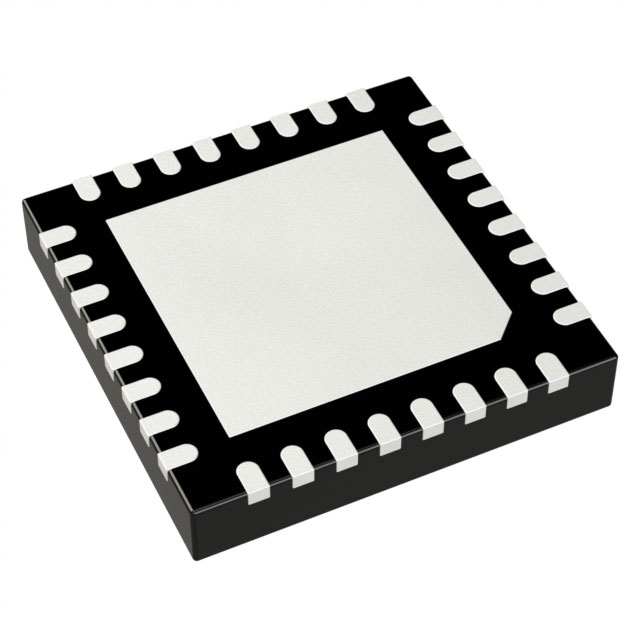

Package: QFN-32

Type: Digital phase shifter

The HMC1133LP5E is a 6-bit digital phase shifter with a rated frequency range of 4.0 to 7 GHz, providing 360-degree phase coverage, with an LSB of 5.625 degrees. The HMC1133LP5E features extremely low RMS phase error of 2.8 degrees and extremely low insertion loss variation of ±0.4 dB across all phase states. This high-precision phase shifter is controlled via a positive control logic of 0/+5 V. The HMC1133LP5E is housed in a compact 5x5 mm plastic leadless SMT package, internally matched to 50 Ohms, requiring no external components.

HMC1133LP5E Product Features:

Low RMS phase error: 2.8°

Low insertion loss: 5 dB

High linearity: +46 dBm

Positive control logic

360° coverage, LSB = 5.625°

32-pin 5x5 mm SMT package, 25 mm²

HMC1133LP5E Applications:

EW receivers

Satellite communications

Beamforming modules

Phase cancellation
