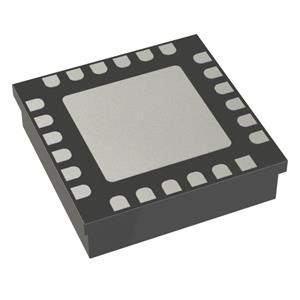

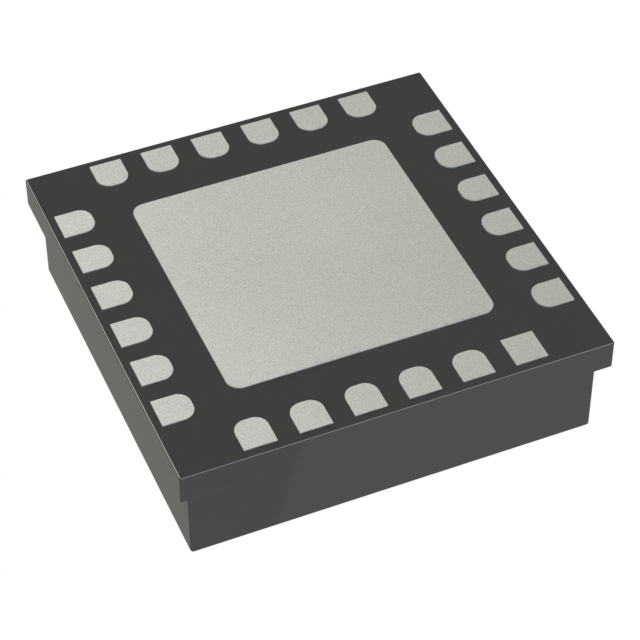

For picture reference, please see the specifications
< >

Commodity Model:HMC911LC4B

Trade Name:Time Delays

Brand:ADI

Particular Year:25+

Package:LCC-24

Delivery Date:New and Original

Stock: 5500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
HMC911LC4B
Package
LCC-24
Describe
DC - 24 GHz, broadband analogue time delay device, LCC-24

Product Description

HMC911LC4B: DC - 24 GHz, broadband analogue time delay device, LCC-24


Overview:

The HMC911LC4B is a 62 ps to 75 ps broadband delay device with a continuously adjustable delay range up to 24 GHz. The delay control is linearly monotonic with respect to the differential delay control voltages (VDCP and VDCN), and the control input has a modulation bandwidth of 1.6 Hz. For single-ended or differential input voltages above the input sensitivity level, the HMC911LC4B provides an integrated constant-amplitude differential output voltage, which can be adjusted using the VAC control pin.


HMC911LC4B Product Features:

Extremely wide bandwidth: 24 GHz

Delay range: 70 ps (typical)

Single-ended or differential operating mode

Adjustable differential output amplitude: 780 mV p-p (typical, at 10 GHz)

Delay control modulation bandwidth: 1.6 GHz (typical)

Single power supply: 3.3 V

24-pin ceramic, lead-free chip carrier (LCC) package


HMC911LC4B Applications:

Clock and data synchronisation

Transponder design

Serial data transmission up to 32 Gbps

Broadband test and measurement

RF ATE applications


Associated Products

Model

Brand

Package

Quantity

Describe

LTC6994IDCB-2

ADI

WFDFN-6

2000

Delay Line IC Programmable 8 Tap 1µs ~ 33.6s 6-WFDFN Exposed Pad

LTC6994HDCB-2

ADI

WFDFN-6

2000

Delay Line IC Programmable 8 Tap 1µs ~ 33.6s 6-WFDFN Exposed Pad

LTC6994IS6-2

ADI

TSOT-23-6

5000

Delay Line IC Programmable 8 Tap 1µs ~ 33.6s SOT-23-6 Thin, TSOT-23-6

LTC6994IS6-1

ADI

TSOT-23-6

4000

Delay Line IC Programmable 8 Tap 1µs ~ 33.6s SOT-23-6 Thin, TSOT-23-6

LTC6994HS6-2

ADI

TSOT-23-6

2000

Delay Line IC Programmable 8 Tap 1µs ~ 33.6s SOT-23-6 Thin, TSOT-23-6
