ADUM2401ARWZ - 5000Vrms 1Mbps Quad-Channel Digital Isolators

Part Number: ADUM2401ARWZ

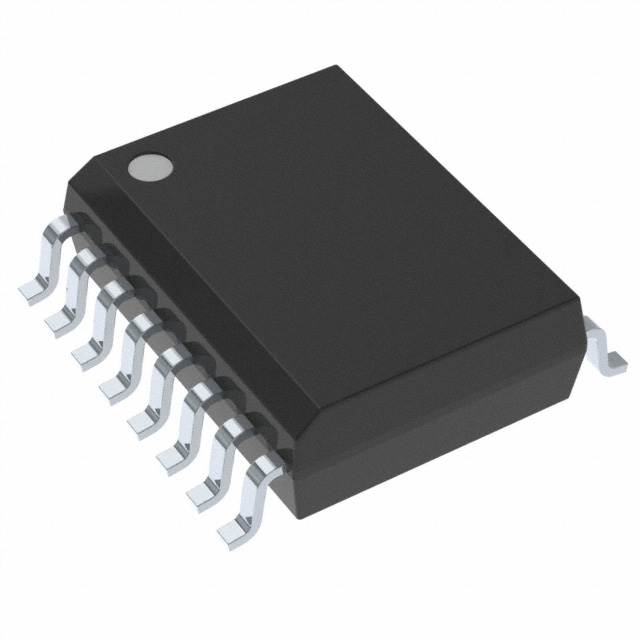

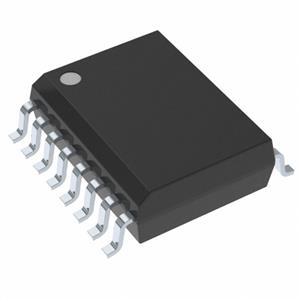

Package: 16-SOIC

Type: Digital Isolators

Description: Digital Isolators - 5000Vrms 1Mbps 4 Channel Digital Isolator

Product Overviews

ADUM2401ARWZ is 4-channel digital isolators based on Analog Devices, Inc., iCoupler® technology. The ADUM2401 isolators provide four independent isolation channels in a variety of channel configurations and data rates. The ADUM2401 models operate with the supply voltage of either side ranging from 2.7 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling a voltage translation functionality across the isolation barrier.

Benefits and Features

Bidirectional communication

3 V/5 V level translation

High temperature operation: 105°C

High data rate: dc to 90 Mbps (NRZ)

Precise timing characteristics

2 ns maximum pulse width distortion

2 ns maximum channel-to-channel matching

High common-mode transient immunity: >25 kV/µs

Applications

General-purpose, high voltage, multichannel isolation

Medical equipment

Motor drives

Power supplies
