The MAX14930DASE Channel 2.75kV Digital Isolator transmits digital signals between circuits of varying power ranges in ambient temperatures up to +125°C. It is used for robust current isolation of digital signals, withstands 2.75kV (RMS) for up to 60s (VISO), withstands 445V (RMS) continuously (VIOWM), and has a 630VP Repetitive Peak Voltage (VIORM), withstands ±10kV surges, and complies with IEC 61000-4-5.

Product Characteristics

Technology: Capacitive Coupling

Type: General Purpose

Isolated power supply: None

Number of channels: 4

Inputs - Side 1/Side 2: 4/0

Channel Type: Unidirectional

Isolation Voltage: 2750Vrms

Common mode transient immunity (min): 25kV/µs (typical)

Data Transfer Rate 1Mbps

Propagation delay tpLH / tpHL (max): 54.1ns, 55.3ns

Pulse width distortion (max) 4.5ns

Rise/fall time (typical) 2ns, 2ns

Voltage - Supply: 1.71V ~ 5.5V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

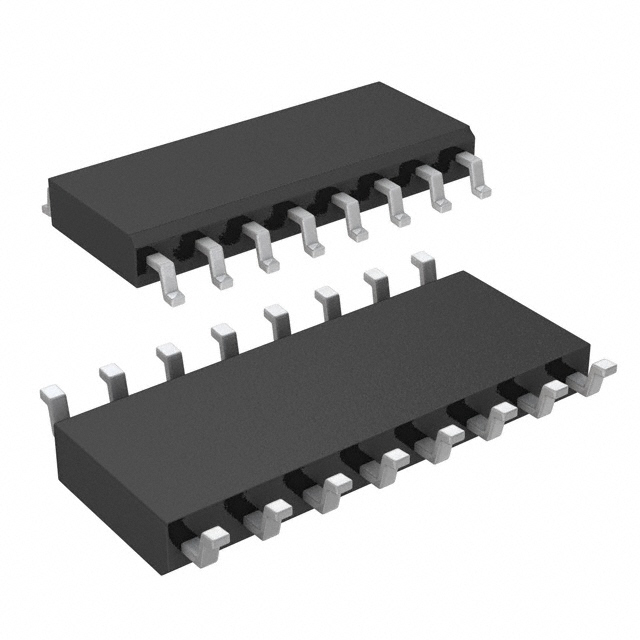

Package/Case: 16-SOIC (0.154 inch, 3.90 mm wide)

Supplier Device Package: 16-SOIC

Applications

Fieldbus communications for industrial automation

Isolated SPI, RS-232, RS-485/RS-422

General multi-channel isolated applications

Battery Management

Medical systems
