ADUM7442CRQZ - 1kV RMS Quad-Channel Digital Isolators

Part Number: ADUM7442CRQZ

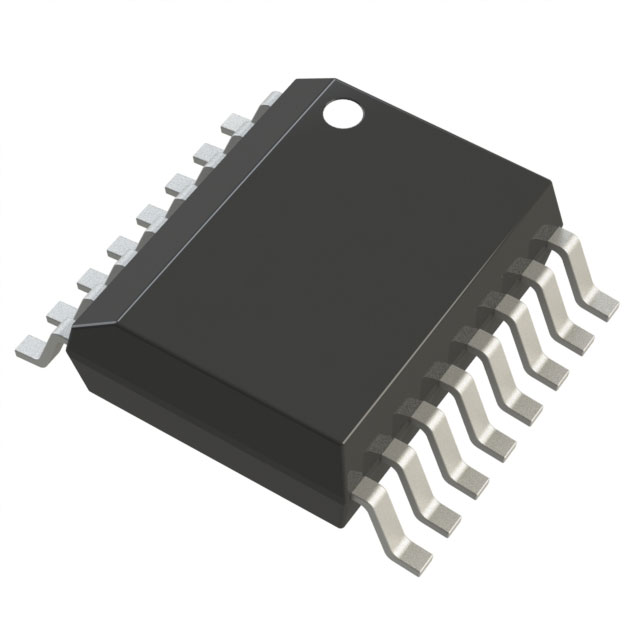

Package: 16-SSOP

Type: Digital Isolators

Description: Digital Isolators - 1kV RMS Quad-Channel Digital Isolator

Product Overviews

ADUM7442CRQZ is 4-channel 1kV digital isolators, it provide low pulse width distortion (<5 ns for C grade). In addition, every model has an input glitch filter to protect against extraneous noise disturbances. The ADUM7442isolators provide four independent isolation channels in a variety of channel configurations and two data rates up to 25 Mbps.

Benefits and Features

1000 V rms isolation rating

Safety and regulatory approvals

Low power operation

- 5 V operation

2.25 mA per channel maximum at 0 Mbps to 1 Mbps

11.5 mA per channel maximum at 25 Mbps

- 3.3 V operation

1.5 mA per channel maximum at 0 Mbps to 1 Mbps

8.25 mA per channel maximum at 25 Mbps

Bidirectional communication

Up to 25 Mbps data rate (NRZ)

3 V/5 V level translation

High temperature operation: 105°C

High common-mode transient immunity: >15 kV/μs

Applications

General-purpose, multichannel isolation

SPI interface/data converter isolation

RS-232/RS-422/RS-485 transceivers

Industrial field bus isolation
