ADUM1253ASA - Ultra-Low-Power Two Channel, Bidirectional I2C Digital Isolator with Unidirectional SCL

Part Number: ADUM1253ASA

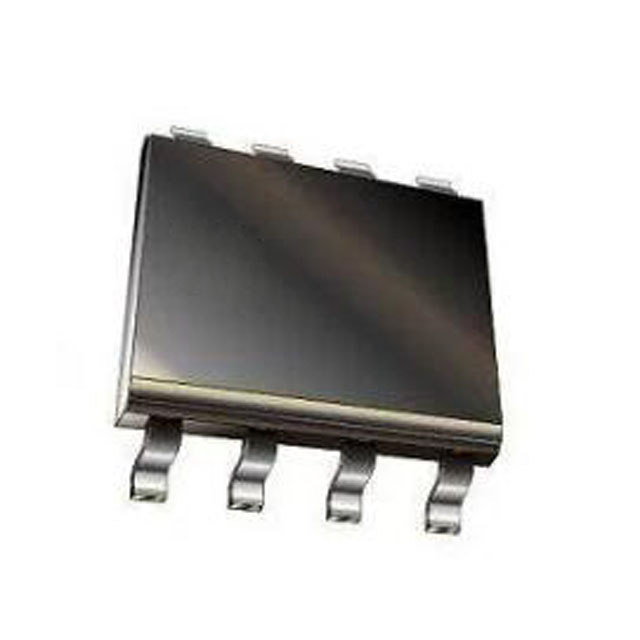

Package: 8-SOIC

Type: Digital Isolators

Description: CAN, I2C Digital Isolator 3000Vrms 2 Channel 2MHz 200kV/µs CMTI 8-SOIC

Product Overviews

ADUM1253ASA is Ultra-Low-Power Two Channel, Bidirectional I2C Digital Isolator. It offers two open-drain channels, one unidirectional and one bidirectional for applications, such as I2C, that require data to be transmitted in both directions on the same line but have a unidirectional clock. The ADuM1253 features independent 1.71V to 5.5V supplies on both side 1 and side 2 of the isolator. The device operates up to 2MHz.

Benefits and Features

• Ultra-Low-Power Consumption for Longer Battery Life

• 142μA (typ) per Channel at 400kHz

• Wide Independent VDD1/VDD2 Supply Range Supports More Logic Voltage Levels and Allows Level Shifting

• 1.71V to 5.5V for Both Sides

• Hot-Swappable Side 2 I/O Prevents Data Corruption

• Initial Side 2 Connection Occurs at Bus Idle or Stop States

• Bidirectional I2C Transfer up to 2MHz SCL

• Strong Current Sinking Enables Lower RPULL-UP

• Robust Galvanic Isolation of Digital Signals

Key Applications

• Isolated I2C/SMBus Interface

• Battery Management Systems

• Power Over Ethernet (PoE)

• Motor Control Systems
