BGSX44MA12E6327XTSA1 - 4P4T Receive Switch With MIPI RFFE Interface

Part Number: BGSX44MA12E6327XTSA1

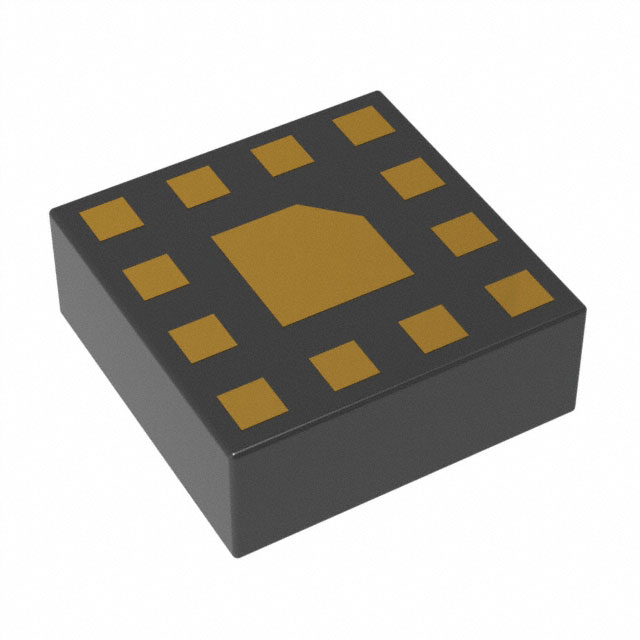

Package: 12-UFQFN

Type: 4P4T Receive Switch

Description: RF Switch IC GSM, LTE, W-CDMA 4P4T 50Ohm PG-ATSLP-12-12

Product Overviews

BGSX44MA12E6327XTSA1 - RF CMOS switch is specifically designed for LTE and WCDMA Receive path applications. This 4P4T offers low insertion loss and low harmonic generation. The switch is controlled via a MIPI RFFE controller. The on-chip controller allows power-supply voltages from 1.65 to 1.95 V. It offering the performance of GaAs with the economy and integration of conventional CMOS including the inherent higher ESD robustness.

Summary of Features

RF CMOS 4P4T Receive switch with high linearity

Suitable for multi-mode LTE and WCDMA applications

Ultra-low insertion loss and harmonics generation

0.1 to 3.8 GHz coverage

High port-to-port-isolation

Common VDD and MIPI supply for small package

Integrated MIPI RFFE interface operating in 1.65 to 1.95 V voltage range

External USID select pin

Leadless and halogen free package ATSLP-12-12 with lateral size of

1.6 mmx 1.6 mm and thickness of 0.6 mm

High EMI robustness

RoHS and WEEE compliant package

Potential Applications

Suitable for multi-mode LTE and WCDMA applications
