Trade Name:RF switch
Brand:ADI
Particular Year:25+

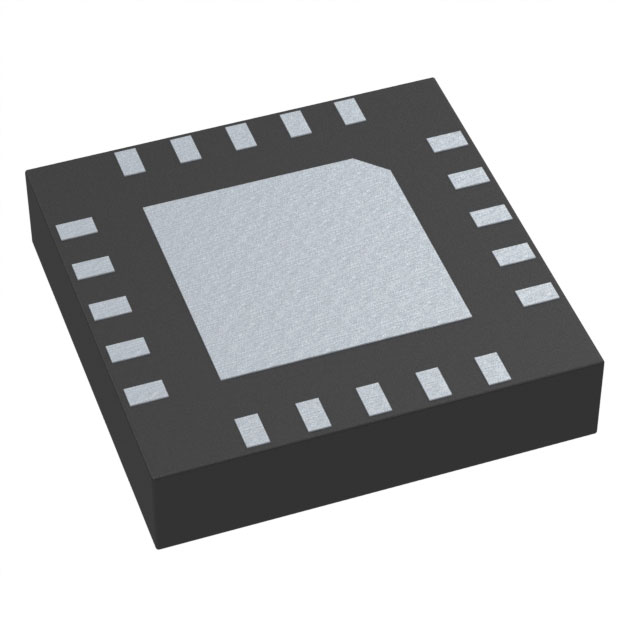

Package:LGA-20
Delivery Date:New and original
Stock: 2500pcs
The ADRF5063BCCZN is a silicon, non-reflective, differential, SPDT switch with an operating frequency range of 9 kHz to 13 GHz, an insertion loss of less than 0.9 dB, and an isolation of over 40 dB. The RF input power handling capacity of ADRF5063BCCZN is: 31 dBm for straight-through path differential, 30 dBm for end path differential, and 27 dBm for RF common port differential hot-cut switching.
Application field
ADRF5063BCCZN is applicable to a variety of fields, including:
Test instruments and meters
Data converter interface
High data rate interface
Main characteristics
Frequency range: 9 kHz to 13 GHz
Non-reflective, differential, 100 Ω impedance design
Low insertion loss
It is 0.8 dB at 10 GHz
It is 0.9 dB at 13 GHz
High isolation
It is 45 dB when >10 GHz
It is 40 dB when the frequency is above 13 GHz
High input linearity
P0.1dB: >31 dBm (typical value)
IP3:65 dBm (typical value)
High power processing capacity
Direct path: 31 dBm (typical value)
Termination path: 30 dBm (typical value)
Hot switching: 27 dBm (typical value)
On and off time: 5 μs (typical value)
Forward control interface: Compatible with CMOS/LVTTL
Fully off state control
Pon-compatible with ADRF5062, allowing for quick version switching
20-terminal 3.0mm × 3.0mm LGA package
