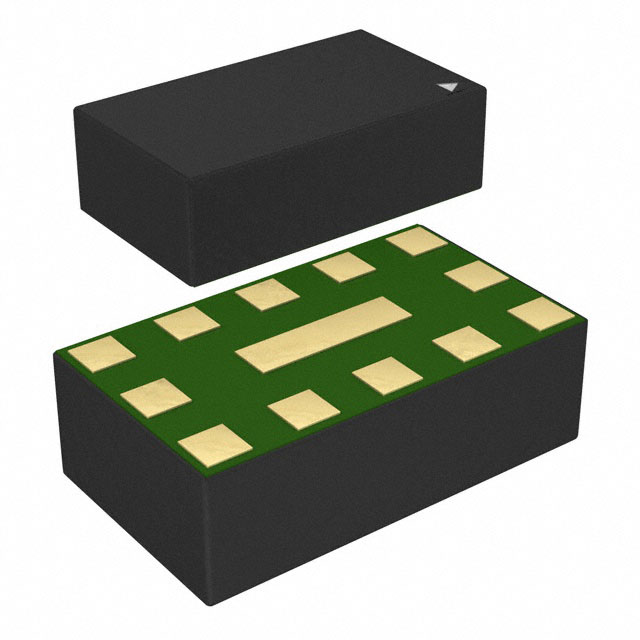

BGS18MA12E6327XTSA1 RF switch is a perfect solution for multimode handsets based on LTE, WCDMA and TDCDMA. It is based on Infineon’s proprietary technology and has excellent RF performance. The ultra-low insertion loss helps customers to achieve high system sensitivity, the coverage of LTE Tx power and 6 GHz enables very broad application. It features DC-free RF ports, external DC blocking capacitors at the RF ports are only required if DC voltage is applied externally. Its on-chip MIPI RFFE 2.0 controller is fully compatible with industry standard.

Features

0.1 to 6 GHz coverage for LTE and LAA application

LTE TX power handling capabilities

Ultra low insertion loss: 0.78 dB at Band 42

Small form factor 1.1mm x 1.9mm

Fully compatible with MIPI 2.0 RFFE standard

No decoupling capacitors required if no DC applied on RF lines

Low harmonic generation

High port-to-port isolation

On-chip control logic including ESD protection

No power supply blocking required

High EMI robustness

RoHS and WEEE compliant package

Applications

Suitable for LTE / WCDMA / TDCDMA applications

Consumer electronics

Mobile devices and smartphones

On-board battery charger (OBC) for electric vehicles
