BGSX22G6U10E6327XTSA1 - DPDT Cross Switch With GPIO Control Interface

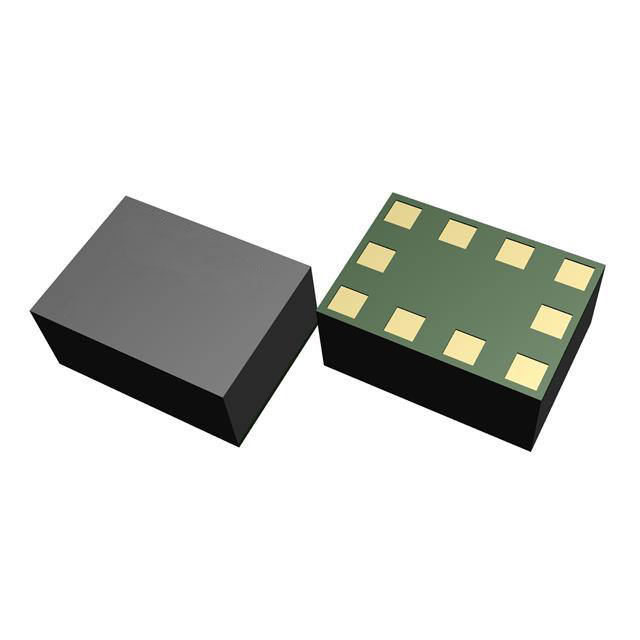

Part Number: BGSX22G6U10E6327XTSA1

Package: 10-UFLGA

Type: RF CMOS Switch

Description: DPDT GPIO 0.4 – 7.125 GHz antenna cross switch

Product Overviews

BGSX22G6U10E6327XTSA1 RF CMOS switch is specifically designed for GSM, WCDMA, LTE and 5G applications. This DPDT offers very low insertion loss even at high frequencies of up to 7.125GHz, low harmonic generation along with high isolation between RF ports. In addition, the fast switching speed enables 5G-SRS applications. The switch is controlled via a GPIO interface. The on-chip controller allows power-supply voltages from 1.6V-3.6V.

Summary of Features

High linearity up to 39dBm peak power

Low current consumption, min supply voltage 1.6V

Ultra low insertion loss and high port to port isolation up to 7.125GHz

Fast switching speed for 5G-SRS applications

GPIO control interface

No decoupling capacitors required for typical applications

Potential Applications

RF path routing/swapping for cellular mobile devices

GSM, WCDMA, 4G/LTE and 5G applications
