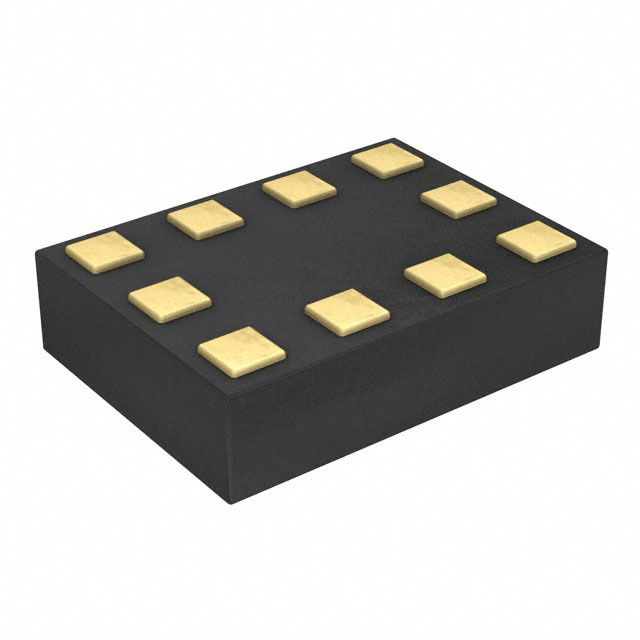

BGSA14M2N10E6329XTSA1 - Ultra Small SP4T Antenna Tuning Switch

Part Number: BGSA14M2N10E6329XTSA1

Package: TSNP-10

Type: SP4T Antenna Tuner Switch

Description: RF Switch IC General Purpose SP4T 850mOhm PG-TSNP-10-9

Product Overviews

BGSA14M2N10E6329XTSA1 is a very small single-pole four throws (SP4T) Antenna Tuning switch optimized for RF applications up to 7.125GHz. Its MIPI RFFE digital control interface allows easy implementation and best flexibility when operated in cellular mobile RF Front-End designs.

The BGSA14M2N10 includes 4 low RON ports making it ideal for high Q tuning applications. Thanks to its high RF voltage ruggedness, it is suited for switching any reactive devices such as inductors and capacitors in RF matching circuits without significant losses.

Summary of Features

Ultra low RON resistance of 0.85 Ω in ON state

Low COFF capacitance of 160 fF in OFF state

High RF operating peak voltage handling of 45 V in OFF state

MIPI RFFE 2.1 control interface

Extremely low current consumption of 22 µA

4 default USID addresses via external USID_SEL pin

Potential Applications

Impedance, Antenna and Inductance Tuning

Tunable Filters
