BGSA400ML10E6327XTSA1 - Ultra High Voltage RF Antenna Tuner Switch

Part Number: BGSA400ML10E6327XTSA1

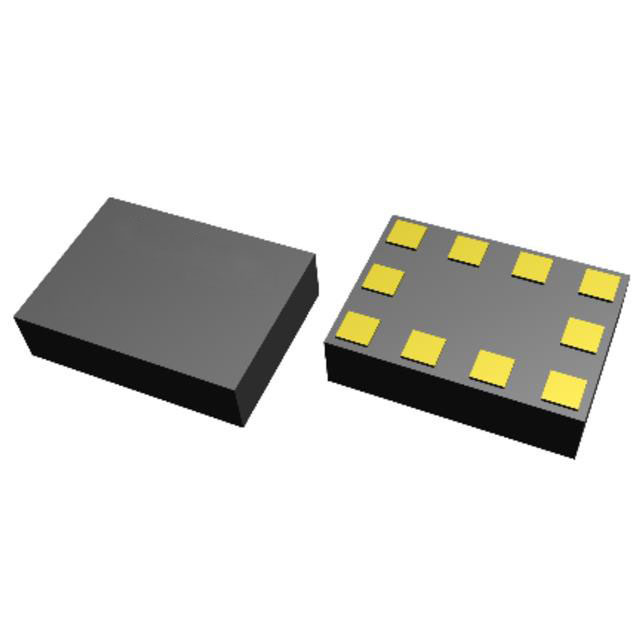

Package: TSLP-10-3

Type: RF Antenna Tuner Switch

Description: 4 x single-pole single-throw (4xSPST) RF antenna tuning switch

Product Overviews

BGSA400ML10E6327XTSA1 is a versatile shunt to ground 4 x single-pole single-throw (4xSPST) RF antenna tuning switch. It is optimized for low COFF as well as low RON enabling applications up to 7.125GHz. The BGSA400ML10 is ideal for antenna tuning application. This chip integrates on-chip CMOS logic and power supply regulation. Its digital control interface is compliant with MIPI2.1 RFFE specification and each switch throw can be programmed individually or all together in the same RFFE command frame.

Summary of Features

Low RON resistance of 2.0 Ω at each port in ON state

Low COFF capacitance of 165 fF at each port in OFF state

High RF operating peak voltage handling of typical 90 V in OFF state

Low harmonic generation

MIPI RFFE 2.1 control interface

Extremely low current consumption of 22 µA

4 default USID addresses via external USID_SEL pin

Potential Applications

Impedance, Antenna and Inductance Tuning

Tunable Filters
