BGS14M8U9E6327XUSA1 - High Power SP4T MIPI RF Switch

Part Number: BGS14M8U9E6327XUSA1

Package: ULGA-9

Type: High Power SP4T MIPI RF Switch IC

Detailed Description: High Power Single Pole Four Throw (SP4T) MIPI RF Switch IC

Product Overviews

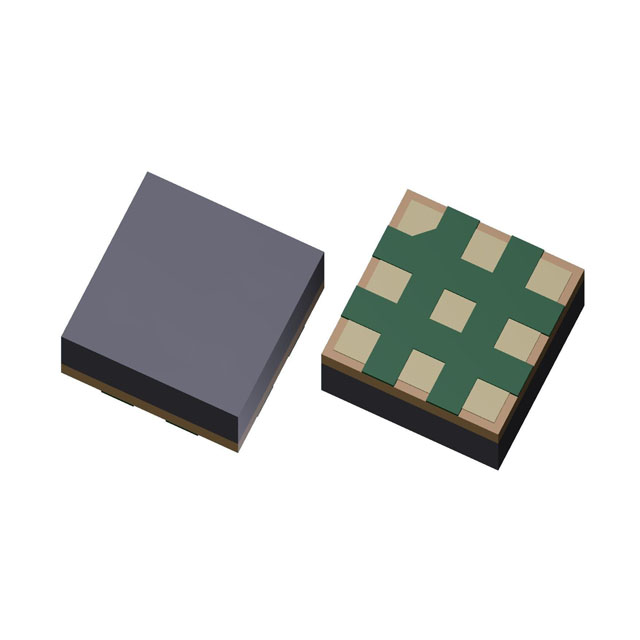

BGS14M8U9E6327XUSA1 is a Single Pole Four Throw (SP4T) high power switch in a compact 9-pin package (1.1 x 1.1 mm2). The device is optimized for 5G and other cellular applications up to 7.125 GHz. With a low insertion loss, high isolation, high linearity and high power handling, BGS14M8U9 is perfect for 5G and LTE 4G applications, such as 5G SRS, Uplink-Carrier Aggregation, and High Power User Equipment (HPUE Class 2).

Product Features

• 39 dBm power handling capability

• Fast switching speed of 1.3 µs

• Operating up to 7.125 GHz to support latest 5G requirements

• Fully compatible with MIPI 2.1 RFFE standard with 2 USIDs

• Single VIO supply supporting both 1.2 V and 1.8 V

• High port-to-port-isolation

• No power supply decoupling required

• No blocking capacitors required if no DC applied on RF lines

• High EMI robustness

Potential Applications

5G and 4G Cellular handsets and cellular modems
