Trade Name:RF Switch
Brand:INFINEON
Particular Year:24+
Package:6-XFDFN
Delivery Date:New and Original
Stock: 1000pcs

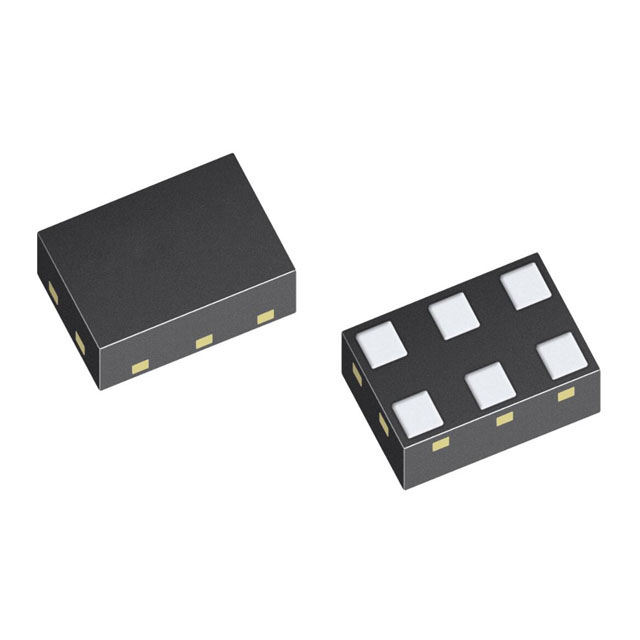

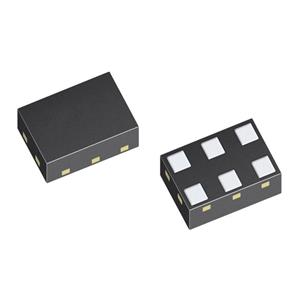

BGS12WN6E6327XTSA1 - Wideband SPDT Diversity Switch With Fast Switching Speed
Part Number: BGS12WN6E6327XTSA1
Package: 6-XFDFN
Type: GPIO Controlled SPDT RF Switch
Detailed Description: Wideband SPDT Diversity switch with fast switching speed
Product Overviews
BGS12WN6E6327XTSA1 is a GPIO controlled SPDT RF switch designed for UWB, WiFi (WLAN) and Bluetooth applications with extended frequency coverage up to 9 GHz. Any of the 2 ports can be used as termination of the diversity antenna handling up to 26dBm. The chip integrates on-chip CMOS logic driven by a simple, single-pin CMOS or TTL compatible control input signal. Unlike GaAs technology, external DC blocking capacitors at the RF ports are only required if DC voltage is applied externally.
Summary of Features
SPDT with power handling capability of up to 26dBm
High switching speed <200ns
0.05 to 9 GHz coverage
Low insertion loss and harmonics generation
High port to port isolation
Package size of 0.7 x 1.1mm2 and thickness of 0.37mm
On-chip control logic
No blocking capacitors required if no DC applied on RF lines
No power supply decoupling capacitor required
High EMI robustness
RoHS and WEEE compliant package
Potential Applications
Cellular diversity path
Wi-Fi Tx/Rx and Bluetooth
UWB
