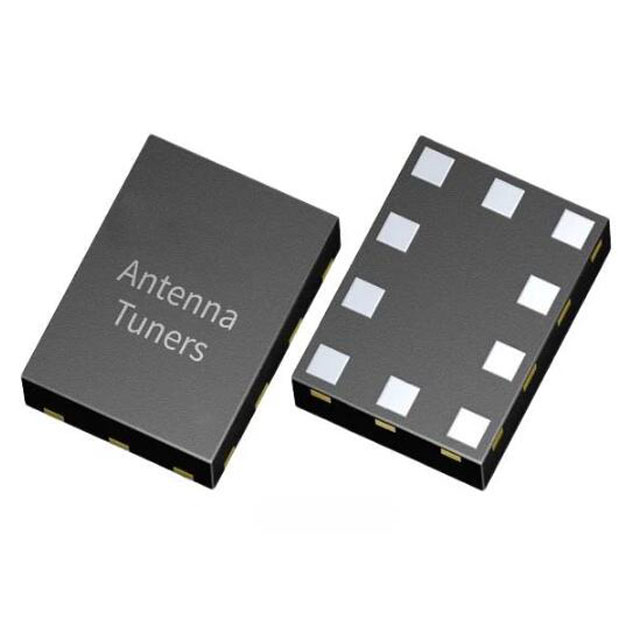

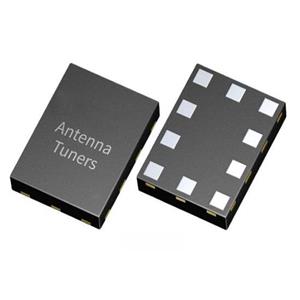

BGSA149MN10E6327XTSA1 - Ultra small antenna tuning SP4T with resonance stoppers

Part Number: BGSA149MN10E6327XTSA1

Package: 10-XFQFN

Type: RF Switch IC

Detailed Description: RF Switch IC SP4T 1.5Ohm PG-TSNP-10-9

Product Overviews

BGSA149MN10E6327XTSA1 is a single-pole four throws (SP4T) antenna tuning switch optimized for RF applications up to 7.125GHz. It is made of 4 low ON resistance / low OFF capacitance series switches and 4 shunt to ground switches enabling on-demand open-reflective or short-reflective OFF ports behavior.

Product Features

Low RON resistance of 1.5 Ω in ON state

Low COFF capacitance of 80 fF in OFF state

RF operating voltage handling 50 V in OFF state

MIPI RFFE 2.1 control interface

Support both 1.8V and 1.2V VIO operation

External USID_SEL pin enabling 4 default USID addresses

Small form factor 0.95 mm x 1.3 mm (MSL1, 260 °C per JEDEC J-STD-020)

Potential applications

Impedance, antenna and Inductance tuning

Tunable filters
