BGSX44MA12 RF CMOS switch is specifically designed for LTE and WCDMA Receive path applications. This 4P4T offers low insertion loss and low harmonic generation.

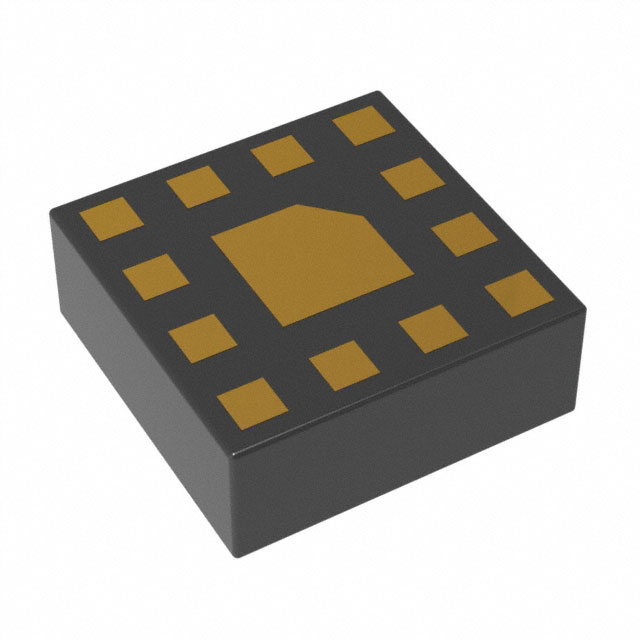

BGSX44MA12 RF Switch is manufactured in Infineon’s patented MOS technology, offering the performance of GaAs with the economy and integration of conventional CMOS including the inherent higher ESD robustness. The device has a very small size of only 1.6 x 1.6 mm2 and a maximum thickness of 0.6 mm.

Features

RF CMOS 4P4T Receive switch with high linearity

Suitable for multi-mode LTE and WCDMA applications

Ultra-low insertion loss and harmonics generation

0.1 to 3.8 GHz coverage

High port-to-port-isolation

Common VDD and MIPI supply for small package

Integrated MIPI RFFE interface operating in 1.65 to 1.95 V voltage range

External USID select pin

Leadless and halogen free package ATSLP-12-12 with lateral size of

1.6 mmx 1.6 mm and thickness of 0.6 mm

High EMI robustness

RoHS and WEEE compliant package

Applications

Suitable for multi-mode LTE and WCDMA applications

Datacenter and computing solutions

Mobile devices and smartphones

On-board battery charger (OBC) for electric vehicles
