BGS12P2L6 - SPDT General Purpose Switch For High Power Applications

Part Number: BGS12P2L6

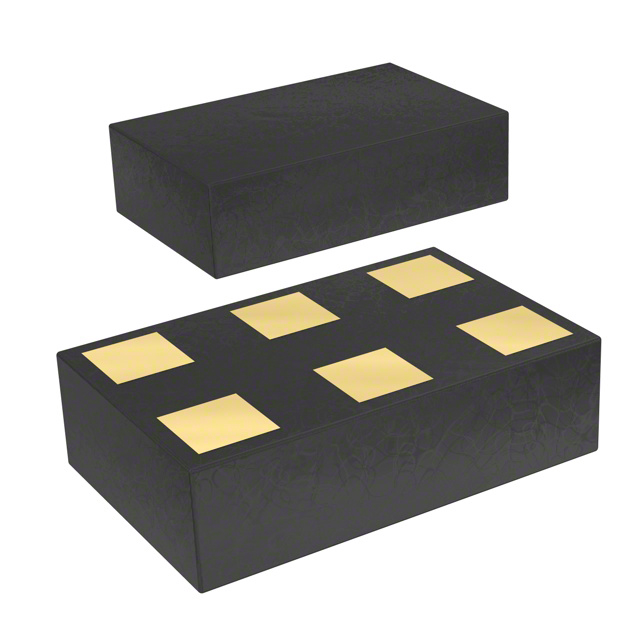

Package: 6-XFDFN

Type: RF Switch IC

Detailed Description: RF Switch IC GSM, LTE, W-CDMA SPDT 50Ohm PG-TSLP-6-4

Product Overviews

BGS12P2L6 is a general purpose high power SPDT switch, designed to cover a broad range applications from 0.05 to 6 GHz and therefore excellent for 5G sub-6 GHz. Its outstanding RF performance optimizes the transmitting path (TRx) of LTE/5G mobile phones. The chip integrates on-chip CMOS logic driven by a simple, single-pin CMOS or TTL compatible control input signal.

Summary of Features

RF CMOS SPDT RF switch with power handling capability of up to 37 dBm

Suitable for multi-mode LTE and 5G applications

Low insertion loss and harmonics generation

0.05 to 6 GHz coverage

High port-to-port isolation

No blocking capacitors required if no DC applied on RF lines

On-chip control logic

Leadless and halogen free package TSLP-6-4

Size: 0.7 x 1.1 mm2 and thickness of 0.31 mm

No power supply decoupling required

High EMI robustness

RoHS and WEEE compliant package

Potential Applications

Mobile cellular applications TRx (4G, 5G)

Post PA

Multipurpose RF switch for high power applications
