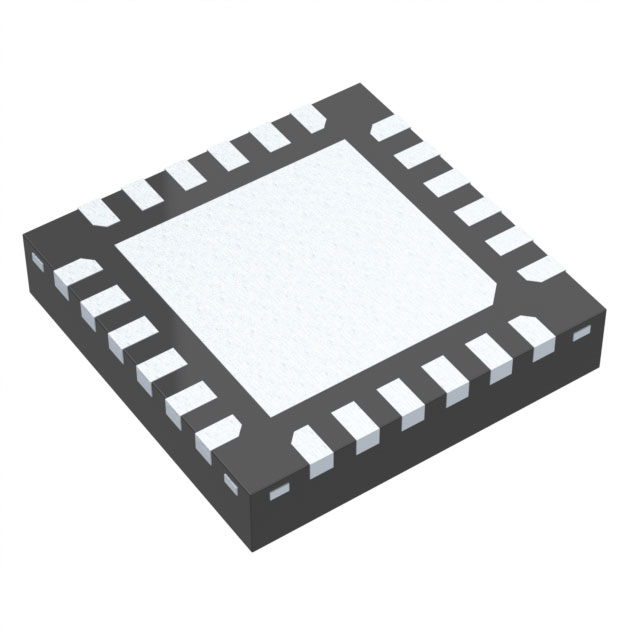

For picture reference, please see the specifications
< >

Commodity Model:HMC641ALP4E

Trade Name:HMC641ALP4E

Brand:ADI

Particular Year:24+

Package:LFCSP-24

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
HMC641ALP4E
Package
LFCSP-24
Describe
GaAs MMIC SP4T non-reflective switch in SMT package, DC-20 GHz

Product Description

The HMC641ALP4E is a general-purpose, non-reflective, single-pole four-throw (SP4T) switch manufactured using the gallium arsenide (GaAs) process. The switch has high isolation, low insertion loss and an on-chip terminating isolation port.


Device: HMC641ALP4E

Type: RF switch

Package: 24-VFQFN

Applications: Test instrumentation, microwave radio and Very Small Aperture Terminal (VSAT), military radio, radar and electronic Countermeasures (ECM), broadband telecommunications systems.


Features

Broadband frequency range: 0.1 GHz to 20 GHz

Non-reflective 50 Ω design

Low insertion loss: 3.0 dB (at 20 GHz)

High isolation: 40 dB (at 20 GHz)

High input linearity: 250 MHz to 20 GHz

P1dB: 24 dBm (typical value)

IP3:41 dBm (typical value)

High power processing

26.5 dBm (by path)

23 dBm (terminated path)

Integrated 2:4 line decoder

24-pin, 4 mm x 4 mm LFCSP package

ESD Rating: 250 V (Class 1A)

HMC641ATCPZ-EP Supports Defense and Aerospace applications (AQEC standard)

Download HMC641ATCPZ-EP Data Sheet (pdf)

Military temperature range (−55 ° C to +125 ° C)

Controlled manufacturing baseline

Unique packaging/testing plant

Sole manufacturer

Enhanced product change Notice

Certification data is available upon request


Associated Products

Model

Brand

Package

Quantity

Describe

HMC849ALP4CE

ADI

QFN-16

2000

High isolation SPDT non-reflective switch, SMT package, DC - 6 GHz

HMC596LP4E

ADI

QFN-24

2000

RF Switch IC CMOS 4x2 switch matrix, SMT package, 0.2 - 3.0

HMC545AE

ADI

SOT-23-6

2000

RF Switch IC GaAs MMIC SPDT Switch, DC - 3 GHz

HMC536MS8GE

ADI

MSOP8G-8

2000

RF Switch IC 3 Watt SPDT T/R Switching Chip SMT, DC - 6 GHz

HMC427ALP3E

ADI

SMT

2000

RF switch IC, SMT package, DC - 8 GHz

SKY13498-21

Skyworks

MCM-20

20000

RF Switch IC General Purpose SP10T 50 Ohm 20-MCM (2.5x2.5)

HMC849ALP4CETR

ADI

LFCSP-16

2000

High isolation SPDT non-reflective switch, SMT package, DC - 6 GHz

F2971NCGK8

Renesas

20-VFQFPN

2500

75ohm SP2T Absorptive RF Switch 5MHz to 3000MHz with RFC Termination

F2955NBGK

Renesas

24-VFQFPN

2500

50MHz to 8GHz, high-reliability SP5T RF switch

TGS2353-2-SM

Qorvo

QFN-22

2000

0.5 to 18 GHz High Power SPDT Reflective Switch
