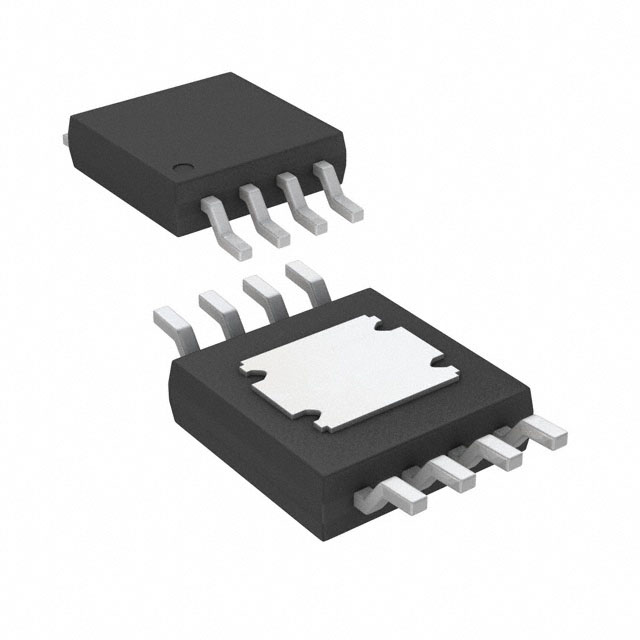

The ADP3635ARHZ is a dual-channel, 4A-gate driver capable of driving two independent n-channel power MOSFETs. The device uses industry standard dimensions but adds high-speed switching characteristics and higher system reliability. The ADP3635 built-in temperature sensor provides two levels of overtemperature protection: one is overtemperature warning, and the other is overtemperature shutdown when the junction temperature is extremely high.

Product attribute

Driver configuration: Low end

Channel type: Independent

Number of drives: 2

Gate type: N channel MOSFET

Voltage - Power supply: 9.5V ~ 18V

Logic voltage - VIL, VIH: 0.8V, 2V

Current - Peak output (input, pull out) : 4A, 4A

Input type: inverting, non-inverting

Rise/fall time (typical value) : 10ns, 10ns

Operating temperature: -40°C ~ 150°C (TJ)

Mounting type: Surface mount type

Package/housing: 8-TSSOP, 8-MSOP (0.118", 3.00mm wide) bare pad

Supplier device package: 8-SOP-EP

Basic product number: ADP3635
