Trade Name:HMC1126ACEZ
Data Manual:
HMC1126ACEZ.pdf
Brand:ADI
Particular Year:23+

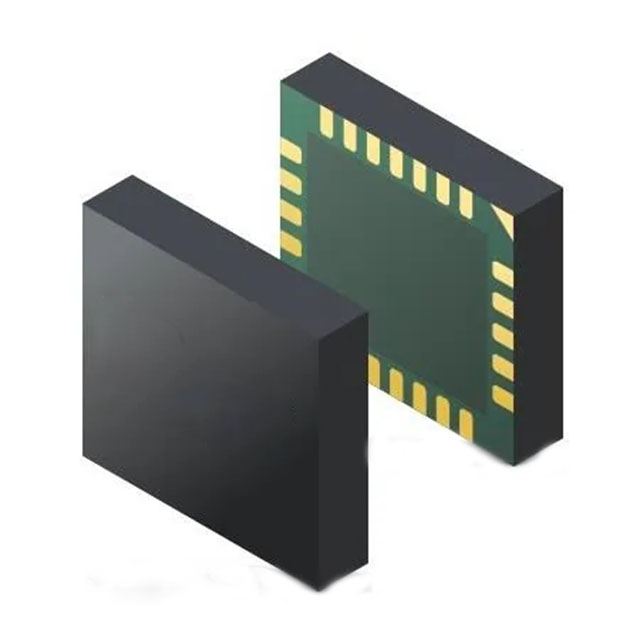

Package:24-LFLGA
Delivery Date:New original
Stock: 2000pcs
HMC1126ACEZ is a gallium arsenide (GaAs), pseudomorphic high electron mobility transfer (pHEMT), low noise amplifier that operates from 400 MHz to 52 GHz.
Features
Gain: 12 dB typical at 10 GHz to 26 GHz
Input return loss: 14 dB typical at 10 GHz to 26 GHz
Output return loss: 16 dB typical at 10 GHz to 40 GHz
OP1dB: 17.5 dB typical at 10 GHz to 26 GHz
PSAT: 21 dBm typical at 10 GHz to 26 GHz
OIP3: 28.5 dBm typical at 10 GHz to 26 GHz
Noise figure: 3.5 dB typical at 10 GHz to 26 GHz
5 V supply voltage at 85 mA
50 Ω matched input and output
No external passive components required
Applications
Test instrumentation
Military and space
