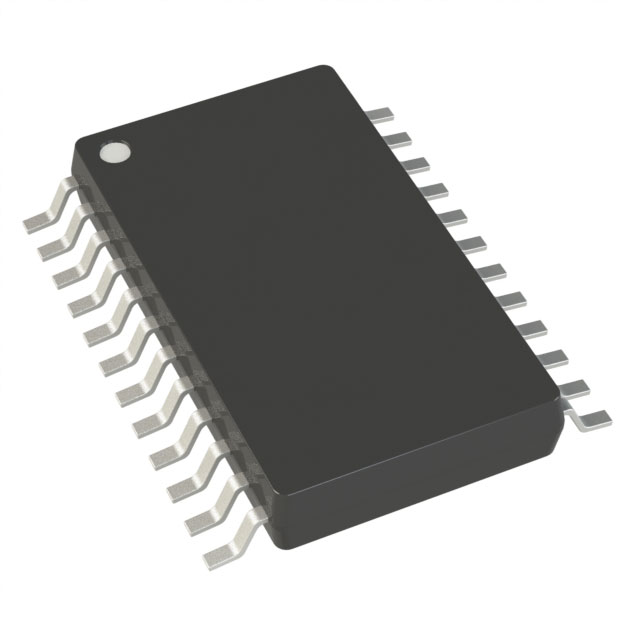

AD5410AREZ (Power Management PMIC) Digital-to-Analogue Converter — Single-channel, 12-bit, serial input, current-source DAC, TSSOP-24

Overview:

The AD5410AREZ is a low-cost, precision, fully integrated 12/16-bit converter with programmable current source output, designed to meet the requirements of industrial process control applications. The output current range is programmable to 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24 mA overrange. The output includes open-circuit protection and can drive a 1H inductive load.

AD5410AREZ Product Features:

12-bit resolution and monotonicity

Current output range:

4 to 20 mA, 0 to 20 mA, or 0 to 24 mA

Total Unadjusted Error (TUE): 0.1%

Output drift: 3 ppm/°C

Flexible serial digital interface

On-chip output fault detection

On-chip reference (maximum 10 ppm/°C)

Asynchronous zeroing function

Power supply (AVDD) range

10.8 V to 40 V

Output loop consistency: AVDD – 2.5 V

Temperature range: -40°C to +85°C

24-pin TSSOP package
