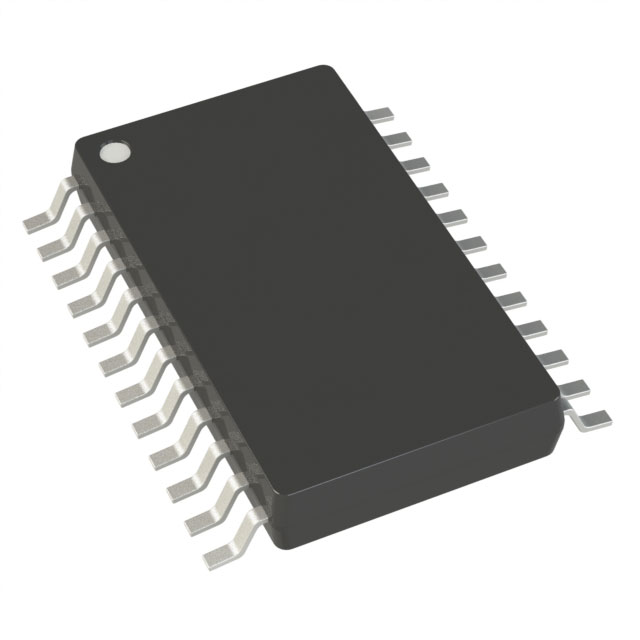

The AD5734RBREZ is a four-channel, 14-bit, serial input, voltage output digital-to-analogue converter (DAC) with an integrated output amplifier, reference voltage buffer, and proprietary power-up/power-down control circuitry. This device ensures monotonicity, with a maximum integral non-linearity (INL) error of ±16 LSB, low noise, a typical settling time of 10 μs, and an integrated +2.5 V on-chip reference voltage source.

Product details:

Model: AD5734RBREZ

Package: TSSOP-24

Type: Digital-to-Analogue Converter (DAC)

Description: Four-channel, 14-bit, serial input, single-ended/differential, voltage output DAC

AD5734RBREZ Specifications:

Product Type: Digital-to-Analogue Converter (DAC)

Series: AD5734R

Resolution: 14-bit

Sampling Rate: 1.1 MS/s

Number of Channels:    4 Channels

Settling Time:    10 us

Output Type:    Voltage

Interface Type:    3-Wire

Analogue Supply Voltage:    +/- 4.5 V to +/- 16.5 V

Digital Supply Voltage:    2.7 V to 5.5 V

Minimum Operating Temperature:    - 40℃

Maximum Operating Temperature:    + 85℃

Mounting Style:    SMD/SMT

Package/Enclosure:    TSSOP-24

DNL - Differential Non-Linearity:    ±1 LSB

INL - Integral Non-Linearity:    ±4 LSB

Number of Converters:    4 Converters

Pd - Power Dissipation:    310 mW
