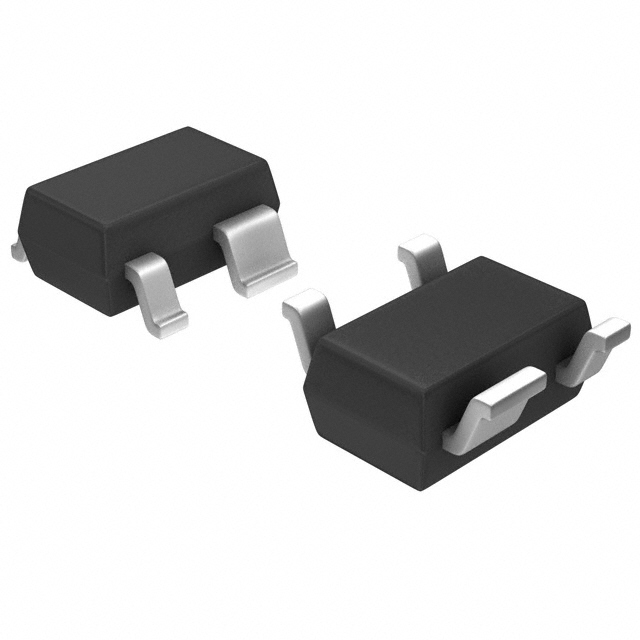

The BGA622H6820XTSA1 is a broadband low-noise amplifier based on Infineon Technologies' silicon-germanium technology B7HF. To provide a low-noise amplifier in a small package, the output pins are used for both RF output and on/off switching. This function can be realised with an RF choke on the output pin. The device turns on when the DC voltage is 0 V or open circuit and turns off when the DC voltage is VCC. When the device is off, it provides an insertion loss of 24 dB and an IIP3 of up to 20 dBm.

Product Attributes

Frequency: 500MHz ~ 6GHz

P1dB: -13dBm

Gain: 13.6dB

Noise Figure: 1.05dB

RF Type: DCS, GSM, ISM

Voltage - Supply: 3.5V

Current - Supply: 10mA

Test Frequency: 2.14GHz

Mounting Type: Surface Mount

Package/Housing: SC-82A, SOT-343

Supplier Device Package: PG-SOT343-3D
