Trade Name:Automotive MOSFET
Brand:INFINEON
Particular Year:25+
Package:PG-TDSON-8
Delivery Date:New and Original
Stock: 5000pcs

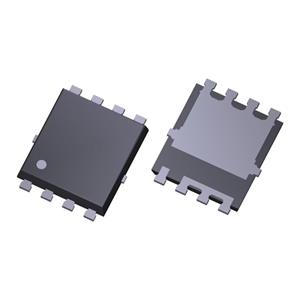

IAUC50N08S5L096 (OptiMOS™-5 Power Transistor) 80V, Automotive Power MOSFET Transistor, PG-TDSON-8
Product Details:
Model: IAUC50N08S5L096
Package: PG-TDSON-8
Type: Power MOSFET Transistor
Overview:
IAUC50N08S5L096 is a 9.6mR 80V MOSFET packaged in a 5x6 mm² SSO8 package, utilising Infineon's leading OptiMOS™ 5 technology. It is used for applications such as LED lighting and motor control.
IAUC50N08S5L096 Specifications:
Series: OptiMOS™
FET Type: N-channel
Technology: MOSFET (Metal-Oxide)
Drain-Source Voltage (Vdss): 80 V
Current at 25°C - Continuous Drain (Id): 50A
Drive Voltage (Maximum Rds On, Minimum Rds On): 4.5V, 10V
On-Resistance at Different Id and Vgs (Maximum): 9.6 mΩ @ 25A, 10V
Vgs(th) at Different Id (Maximum): 2V @ 24µA
Gate Charge (Qg) at Different Vgs (Maximum): 29 nC @ 10 V
Vgs (Maximum): ±20V
Input capacitance (Ciss) at different Vds (maximum): 1684 pF @ 40 V
Power dissipation (maximum): 60W (Tc)
Operating temperature: -55°C to 175°C (TJ)
Mounting type: Surface mount
Supplier device package: PG-TDSON-8-33
IAUC50N08S5L096 Product Features:
OptiMOS™ 5 Power MOSFET
N-channel enhancement mode logic level
MSL1 with maximum reflow temperature up to 260°C peak
Operating temperature up to 175°C
100% Avalanche tested
Device supports PPAP
