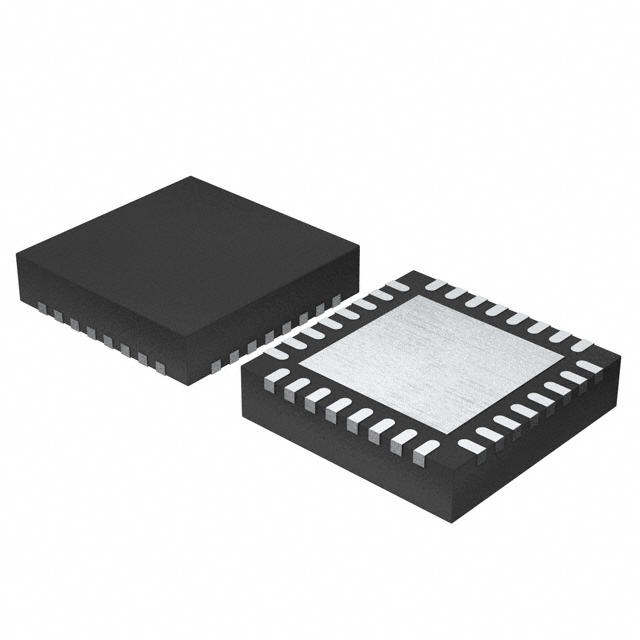

Trade Name:HMC797APM5ETR
Data Manual:
HMC797APM5ETR.pdf
Brand:ADI
Particular Year:23+
Package:32-LFQFN
Delivery Date:New and Original
Stock: 1000pcs
The HMC797APM5ETR is a GaAs MMIC pHEMT distributed power amplifier operating between DC and 22 GHz. The amplifier provides 15 dB gain, +29 dBmdBm output power, +31 dBm saturated output power, and 25% PAE while requiring a 400 mA +10 V supply. Output IP3 of up to +41dBm is ideal for high linearity applications in the military and space sectors. Ideal for high linearity applications. This power amplifier has a positive gain slope from 2 to 20 GHz, making it ideal for EW, EE, and EMC applications.
Product Characteristics
Frequency: 0Hz ~ 22GHz
P1dB: 28dBm
Gain: 13.5dB
Noise Figure: 6dB
RF Type: VSAT
Voltage - Supply: 10V
Current - Supply: 400 mA
Test Frequency: 22 GHz
Mounting Type: Surface Mount
Package/case: 32-LFQFN (with open area), CSP
Delivery includes: 32-LFCSP-CAV (5x5)
Applications
● Test instruments
● Military and aerospace
● Fibre optics
