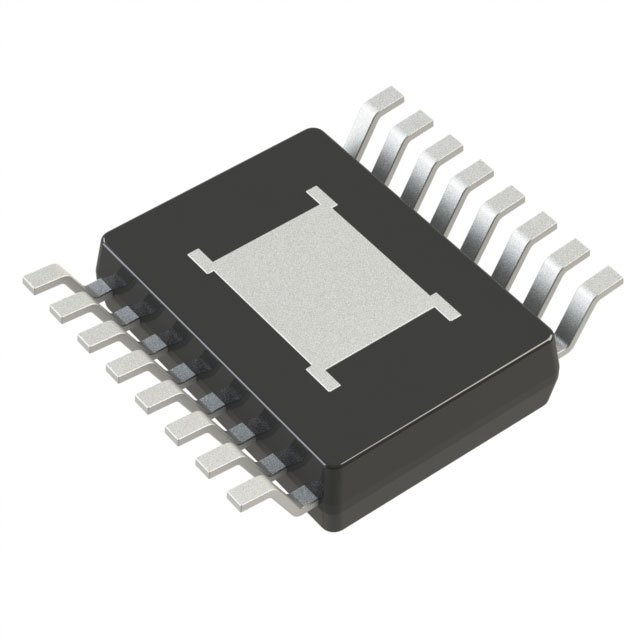

For picture reference, please see the specifications
< >

Commodity Model:LT6658AHMSE-3.3

Trade Name:Voltage Reference

Brand:ADI

Particular Year:25+

Package:MSOP-16

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT6658AHMSE-3.3
Package
MSOP-16
Describe
Series, dual output voltage reference IC 6 V ±0.05% 16-MSOP-EP

Product Description

The LT6658AHMSE-3.3 is a high-precision, dual-output, low-noise voltage reference chip belonging to the LT6658 series. This device combines the functions of a reference voltage source and a linear regulator, making it suitable for applications such as high-precision ADC/DAC driving, industrial control, and automotive electronics.


LT6658AHMSE-3.3 Features

Dual Outputs: Both outputs have the same precision specifications and maintain consistency under temperature and load variations.

High Precision: Class A accuracy of ±0.05%, with a temperature coefficient of 10ppm/°C.

Low Noise: Noise is only 1.5ppm peak-to-peak in the 0.1Hz to 10Hz frequency range.

High current capability: Output 1 provides 150mA source current and 20mA sink current; Output 2 provides 50mA source current and 20mA sink current.

Wide operating voltage range: Input voltage range is 4.5V to 36V.

Load regulation: When using Kelvin connection, load regulation is only 0.1ppm/mA.

Package: Features a 16-pin plastic MSOP package with an exposed pad for improved heat dissipation.

Short-circuit and thermal protection: Provides short-circuit and thermal protection to prevent thermal overload.


LT6658AHMSE-3.3 Specifications

Output voltage: 3.3V

Output current: Output 1: 150mA (source current)/20mA (sink current)

Initial Accuracy: ±0.05%

Temperature Coefficient: 10 ppm/°C

Noise: 0.1 Hz to 10 Hz: 1.5 ppm peak-to-peak

Operating Voltage Range: 4.5 V to 36 V

Package: 16-pin plastic MSOP with exposed pad (MSE16)

Operating Temperature Range: -40°C to 125°C
