The LT6658AHMSE-5 is a precision dual-output reference voltage source device that combines the performance of a precision reference voltage source with that of a linear regulator (which we call a Refulator™). Even with heavy loads, both outputs are ideal for driving the reference inputs of high-resolution ADCs and DACs while also powering microcontrollers and other circuits. Both outputs have the same precision specifications and remain consistent across temperature and load ranges. Each output can be configured using external resistors to provide output voltages up to 6V.

The LT6658AHMSE-5 uses Kelvin connections and typically offers a load regulation of 0.1ppm/mA and a load current of up to 150mA. A noise reduction pin can be used to reduce total integrated noise and limit its bandwidth.

Each output provides a separate power supply pin, which can reduce power consumption and isolate the buffer amplifier. These outputs have excellent power supply rejection characteristics, remaining stable with capacitors ranging from 1μF to 50μF.

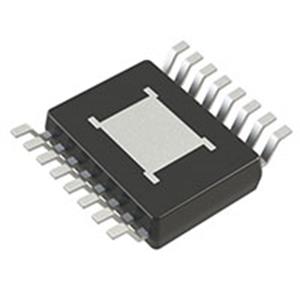

The LT6658AHMSE-5 is available in a 16-pin MSOP package with an exposed pad for thermal management. Short-circuit and thermal protection help prevent thermal overload.

LT6658AHMSE-5 Applications

Microcontrollers or FPGAs with integrated ADC/DAC applications

Data acquisition systems

Automotive control and monitoring

Precision low-noise regulators

Instrumentation and process control

LT6658AHMSE-5 Features

Dual-output tracking reference voltage source

Each output configurable to 6V

Output 1: 150mA source current/20mA sink current

Output 2: 50mA source current/20mA sink current

Low drift:

Grade A: 10ppm/°C (maximum)

Grade B: 20ppm/°C (maximum)

High accuracy:

Grade A: ±0.05% (maximum)

Grade B: ±0.1% (maximum)

Low noise: 1.5ppmP-P (0.1Hz to 10Hz)

Wide operating voltage range up to 36V

Load regulation: 0.25μV/mA

AC PSRR: 96dB (at 10kHz)

Kelvin detection connection on the output terminal

Thermal shutdown

Each output provides a separate power pin

Exposed pad package MSE16
