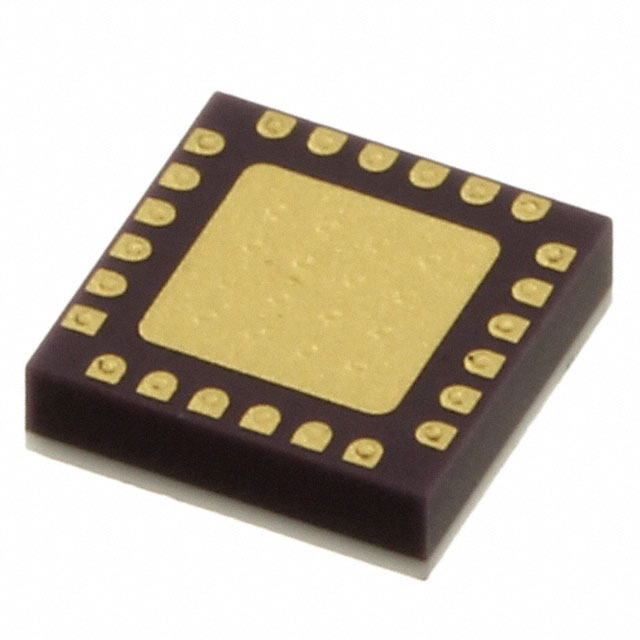

The HMC519LC4TR is a high dynamic range GaAs pHEMT MMIC low noise amplifier (LNA) in a leadless 4 x 4 mm ceramic surface mount package. The amplifier operates from 18 to 31 GHz, provides 14 dB of small-signal gain, a 3.5 dB noise figure, and +23% output IP3. The noise figure is 3.5 dB and the output IP3 is +23 dBm while requiring only 75 mA. the P1dB output power is +11 dBm, allowing the LNA to be used as a LO driver for a balanced, I/Q, or image suppression mixer. P1dB output power of +11 dBm allows the LNA to be used as a LO driver for balanced, I/Q or image suppression mixers.

Product Characteristics

Frequency: 18 GHz ~ 31 GHz

P1dB: 12.2dBm

Gain: 14.4dB

Noise Figure: 3.5dB

RF Type: VSAT

Voltage - Supply: 3V

Current - Supply: 75 mA

Test Frequency: 18 GHz ~ 28 GHz

Mounting Type: Surface Mount

Packaging / Case: 24-TFCQFN with open area

Delivery includes: 24-CFCQFN (4x4)

Applications

● Point-to-point radio

● Point-to-multipoint radio and VSAT

● Test equipment and sensors

● Military and aerospace
