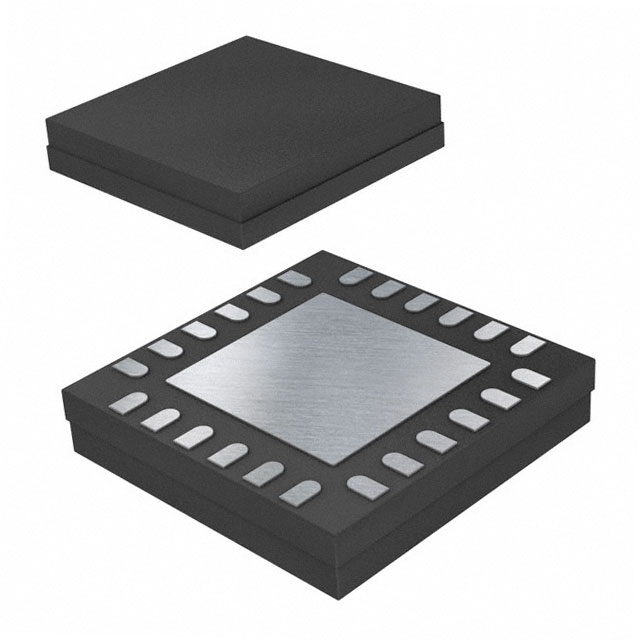

The HMC504LC4B is a GaAs MMIC low noise broadband amplifier in a 4x4 mm leadless ceramic surface mount package. Operating between 14 and 27 GHz, the amplifier provides up to 19 dB of small-signal gain, 2.2 dB noise figure, and +26 dBm output IP3 from a +4V supply requiring only 90 mA. P1dB output power of up to +17 dBm allows the LNA to be used as a LO driver for a balanced, I/Q, or image-suppression mixer. It also features DC blocking and internally matched 50 ohm input/output interfaces.

Product Characteristics

Frequency: 14 GHz ~ 27 GHz

P1dB: 17dBm

Gain: 19dB

Noise Figure: 2.2dB

RF Type: General Purpose

Voltage - Supply: 4V

Current - Supply: 90 mA

Mounting Type: Surface Mount

Package/case: 24-TFCQFN (with open area)

Supplier Device Package: 24-CLCC (3.9x3.9)

Applications

● Point-to-point radios

● Point-to-multipoint radios

● Military and aerospace

● Test instruments
