The ADL8111ACCZN is a low noise amplifier (LNA) with a non-reflective bypass switch that provides broadband operation from 10 MHz to 8000 MHz. The noise figure is as low as 2.8 dB, while the high output third-order intercept (OIP3) of 34 dBm provides a high dynamic range. Gain of 12.5 dB provides stability over frequency, temperature and power supply conditions, as well as inter-device stability. The integrated amplifier and two single-pole, four-throw (SP4T) non-reflective switches enable a wide range of gain and linearity values. The addition of the switches also provides high input intercept performance, preventing distortion in high signal level applications.

Product Characteristics

Frequency: 10MHz ~ 8GHz

P1dB: 19.5dBm

Gain: 11.5dB

Noise Figure: 4.5dB

RF Type: General Purpose

Voltage - Power: 3V ~ 5.5V

Current - Supply: 70mA

Test Frequency: 10MHz ~ 5GHz

Mounting Type: Surface Mount

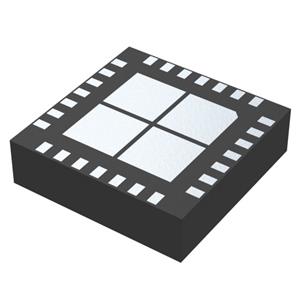

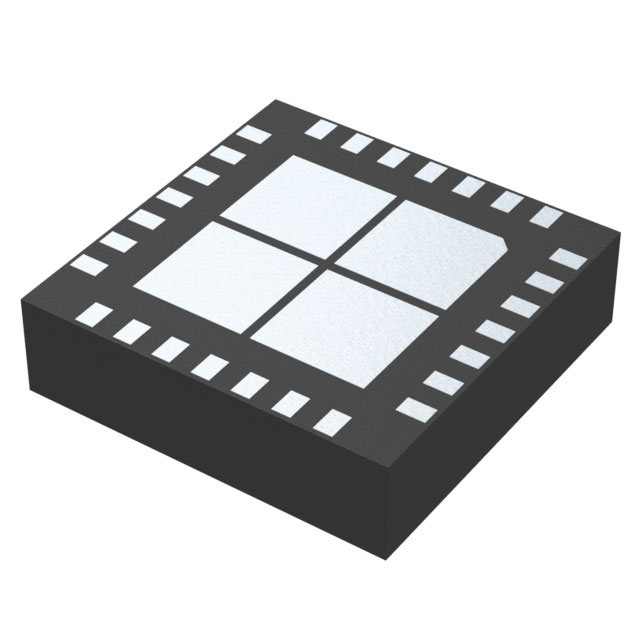

Package / Case: 28-LFLGA with open area

Scope of delivery: 28-LGA (6x6)

Applications

● Military

● Test instruments

● Communication
