The ADL8121ACPZN is a gallium arsenide (GaAs) monolithic microwave integrated circuit (MMIC), pseudo-amorphous high electron mobility transistor (pHEMT), low-noise broadband amplifier operating from 0.025 GHz to 12 GHz. Operating from 0.025 GHz to 12 GHz, it provides 16.5 dB typical gain, 2.5 dB typical output third-order intercept (OIP3) of 36 dBm, and 36 dBm over the 0.025 GHz to 10 GHz frequency range, requiring only 95 mA of 5 V supply voltage. The saturated output power (PSAT) is 21.5 dBm typical over the 0.025 GHz to 10 GHz frequency range.

Product Characteristics

Frequency: 25MHz ~ 12GHz

P1dB: 17dBm

Gain: 17dB

Noise Figure: 3.5dB

RF Type: Radar

Voltage - Power: 5V

Current - Supply: 95mA

Test Frequency: 10 GHz ~ 12 GHz

Mounting Type: Surface Mount

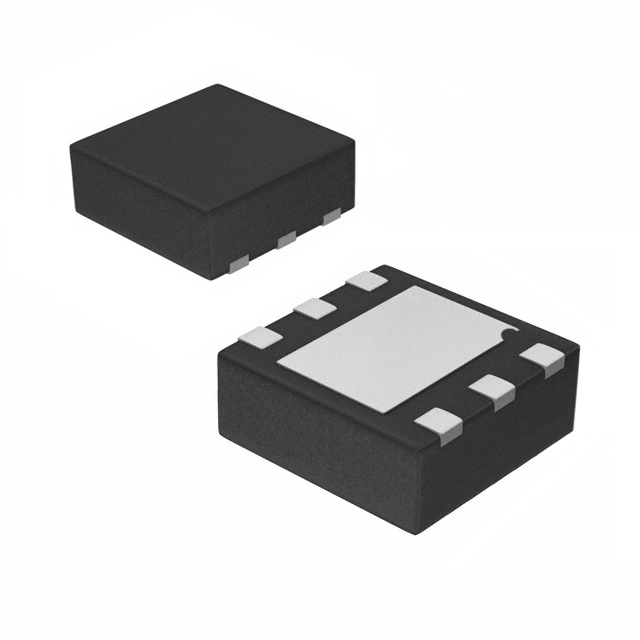

Package/Housing: 6-VDFN (with open pads), CSP

Power Supply Included: 6-LFCSP (2x2)

Applications

● Test Instruments

● Military communications

● Military radar

● Telecommunications
