The LM74900QRGERQ1 ideal diode controller drives and controls external back-to-back N-channel MOSFETs, simulating ideal diode rectifiers with power path on/off control and overcurrent and overvoltage protection. 3V to 65V wide input power supplies support protection and control of 12V and 24V automotive battery-powered ECUs. The device can withstand and protect loads from negative supply voltages as low as -65V.

specification

Type: N+1 ORing Controller

FET type: N channel

Ratio - Input: Output: 1:1

Internal switch: Yes

Current - Output (Max.) : 2.6A

Current - Power supply: 635 µA

Voltage - Power supply: 3V ~ 65V

Application: Automotive grade, redundant power supply

Operating temperature: -40°C ~ 125°C (TA)

Mounting type: Surface mount, wets flanks

Package/housing: 24-VFQFN bare pad

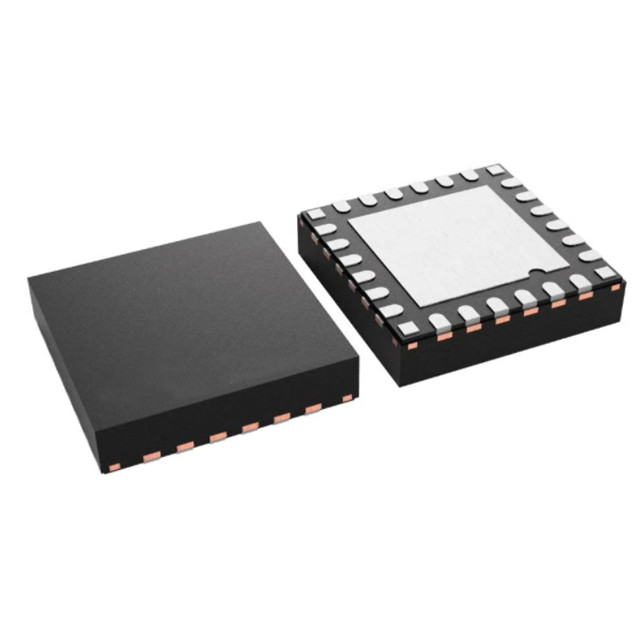

Supplier Package: 24-VQFN (4x4)

Applications

• Car battery protection

- ADAS domain controller

- Infotainment and clustering

- Car audio: external amplifier

• Active ORing for redundant power supplies
