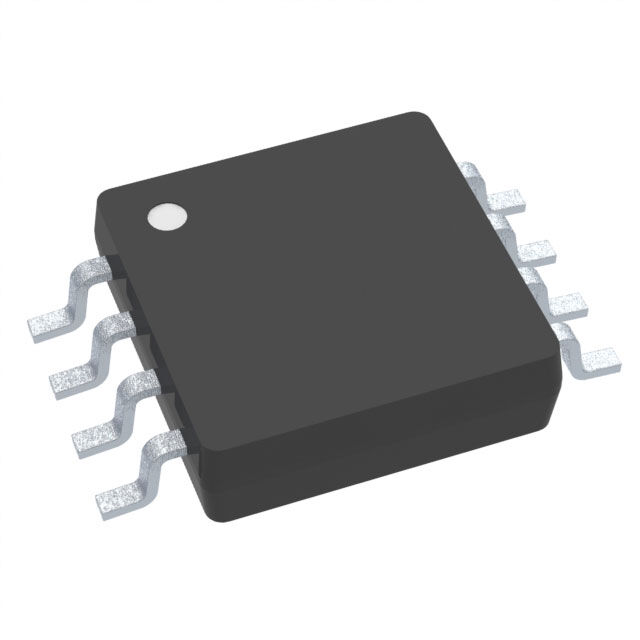

OPA2383DGKR precision amplifiers offers state-of-the-art performance. With zero-drift technology, the OPA2383DGKR offset voltage and offset drift provide unparalleled long-term stability. With a ultra-low 65µA of quiescent current, the OPA2383DGKR are able to achieve 2.5MHz of bandwidth, a broadband noise of 32nV/√Hz, and a 1/f noise at 650nVPP. These specifications are crucial to achieve extremely-high precision and no degradation of linearity in 16-bit to 24-bit analog to digital converters (ADCs). The OPA2383DGKR feature flat bias current over temperature; therefore, little to no calibration is needed in high input impedance applications over temperature.

Feature Of OPA2383DGKR

Ultra-low offset voltage: ±5µV (maximum)

Zero drift: ±0.025µV/°C

Low-input bias current: 50pA (maximum)

Low noise: 32nV√Hz at 1kHz

No 1/f noise: 650nVPP (0.1Hz to 10Hz)

Common-mode input range ±100mV beyond supply rails

Gain bandwidth: 2.5MHz

Quiescent current: 65µA per amplifier

Single supply: 1.7V to 5.5V

Dual supply: ±0.85V to ±2.75V

EMI and RFI filtered inputs

Applications Of OPA2383DGKR

Electronic thermometer

Weigh scale

Temperature transmitter

Ventilators

Data acquisition (DAQ)

Semiconductor test

Lab and field instrumentation

Merchant network and server PSU

Analog input module

Pressure transmitter
