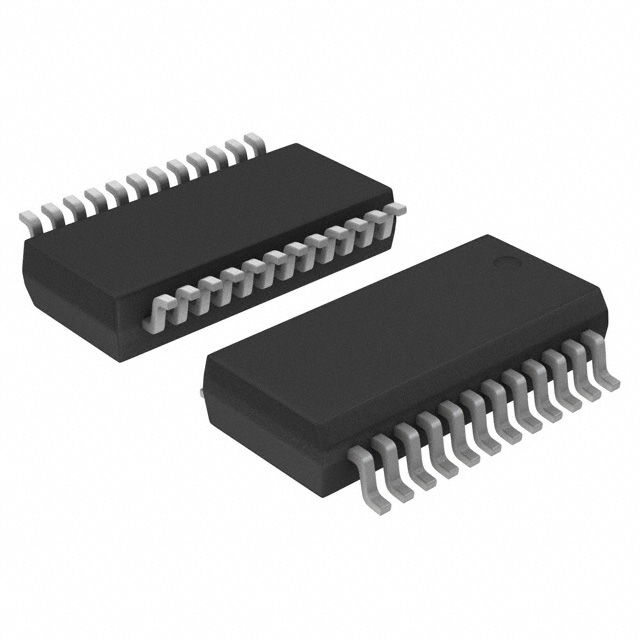

For picture reference, please see the specifications
< >

Commodity Model:LTC4229IG

Trade Name:OR Controller, Ideal Diode

Brand:ADI

Particular Year:25+

Package:SSOP-24

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LTC4229IG
Package
SSOP-24
Describe
Ideal diode and hot-swappable controller, 1-channel universal 24-SSOP

Product Description

The LTC4229IG is a power management chip introduced by Analog Devices (ADI) to provide ideal diodes and hot-swappable functionality ‌. The LTC4229IG saves power and circuit board area by controlling two external N-channel MOSFETs to provide ideal diodes and hot-swappable functions for the power rail. The LTC4229IG has the following main features:

Ideal diodes for redundant power supplies and surge current control

Low-loss alternatives to power Schottky diodes

It can protect the output voltage from the influence of input undervoltage

Hot-swapping operations are allowed to be safely performed on the live backplane

Operating range: 2.9V to 18V

Controllable back-to-back N-channel MOSFETs

The peak fault current can be limited within a time of ≤1μs

Adjustable current limit value with return

Adjustable start-up and current-limiting fault delay

The ideal diode on-off time of 0.5μs

Under-voltage and over-voltage protection

Status, faults and good power output

After a failure occurs, perform a locking or automatic retry operation (which can be selected through pins).

16-pin SSOP package


Application field

The LTC4229IG is suitable for a variety of applications, including redundant power supply, power preservation, high availability systems and servers, telecommunications and network infrastructure, etc., especially in systems that require high reliability and low power ‌.


Associated Products

Model

Brand

Package

Quantity

Describe

LTC4229IUFD

ADI

QFN-24

3000

Ideal diode and hot-swappable controller, 1-channel universal 24-QFN

LTC4229CUFD

ADI

QFN-24

3000

Ideal diode and hot-swappable controller, 1-channel universal 24-QFN

LTC4229CG

ADI

SSOP-24

3000

Ideal diode and hot-swappable controller, 1-channel universal 24-SSOP

LTC4450AV

ADI

LQFN-16

3000

18V, 12A ideal diode ORing controller N-channel 1:1 16-LQFN

LTC4451AV

ADI

LQFN-16

3000

40V, 7A ideal diode ORing controller N-channel 1:1 16-LQFN

LT4423AV

ADI

LDFN-10

3000

28V, 2A ideal diode and load switch

LT4422AV

ADI

LDFN-10

3000

28V, 4A ideal diode ORing controller P-channel 1:1 10-LDFN

LTC4412IS6

ADI

TSOT-23-6

2000

Low Loss PowerPath™ Controller in ThinSOT

MAX40203AUK

Maxim

SOT-23-5

10000

OR Controller Source Selector Switch P Channel 1:1 SOT-23-5

MAX16141AADA/VY

Maxim

TQFN-16

3000

3.5V to 36V ideal diode controller with voltage and current circuit breakers
