ADC3244IRGZ: 125MSPS, Dual, 14-bit Analog to Digital Converter (ADC), VQFN-48

Product Details:

Model: ADC3244IRGZ

Package: VQFN-48

Type: Analog-to-Digital Converter (ADC)

ADC3244IRGZ Product Features:

Dual-channel

14-bit resolution

Single-supply: 1.8V

Serial LVDS interface (SLVDS)

Flexible input clock buffer supporting 1-division, 2-division, and 4-division

Signal-to-noise ratio (SNR) = 72.4dBFS at fIN = 70MHz, spurious-free dynamic range (SFDR) = 87dBc

Ultra-low power consumption: 116mW per channel at 125MSPS

Channel isolation: 105dB

Internal jitter and chopping

Multichip synchronisation support

Pin-to-pin compatible with 12-bit version of the device

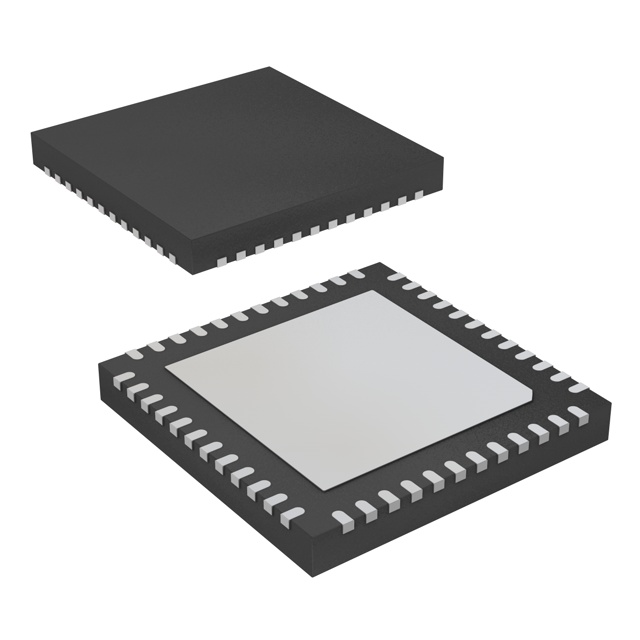

Package: Ultra-thin quad flat leadless (VQFN)-48 (7mm x 7mm)

ADC3244IRGZ Applications:

Multi-Carrier, Multi-Mode Cellular Base Stations

Radar and Smart Antenna Arrays

Motor Control Feedback

Network and Vector Analysers

Communications Test Equipment

Non-Destructive Testing

Microwave Receivers

Software Defined Radios (SDRs)

Orthogonal and Diversity Radio Receivers

Handheld Radios and Meters
