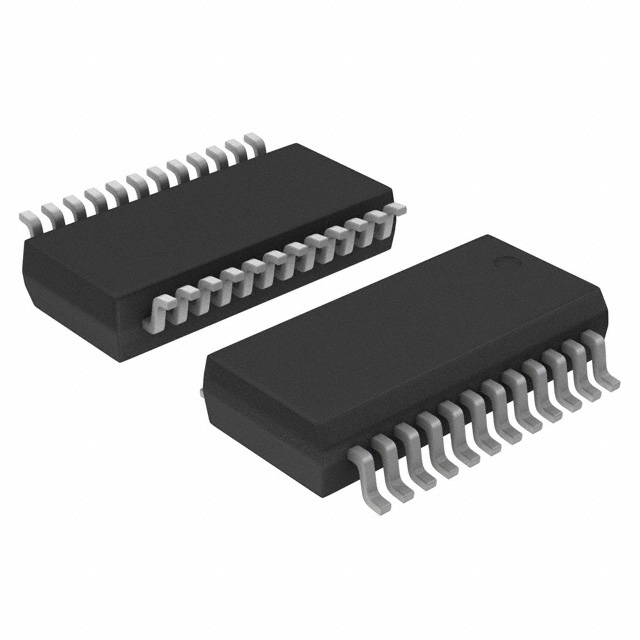

For picture reference, please see the specifications
< >

Commodity Model:LTC4229CG

Trade Name:OR Controller, Ideal Diode

Brand:ADI

Particular Year:25+

Package:SSOP-24

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LTC4229CG
Package
SSOP-24
Describe
Ideal diode and hot-swappable controller, 1-channel universal 24-SSOP

Product Description

The LTC4229CG device provides an ideal diode and Hot Swap™ functionality for a power rail by controlling two external N-channel MOSFETs. A MOSFET that functions as an ideal diode replaces a high-power Schottky diode and the associated heat sink, thereby saving power and circuit board area. Hot-swappable MOSFET control allows for safe plugging and unplugging operations of the circuit board on a live backplane by limiting the surge current. In addition, the LTC4229CG also provides protection against short-circuit faults for the power output by using a fast-acting return current limit and an electronic circuit breaker.


Basic parameters

Model: LTC4229CG

Type: Heat exchange controller, OR controller

Number of channels: 1

Internal switch: None

Application: General

Features: OVP, UVLO

Programmable features: automatic retry, rate limiting, fault timeout, and fault locking

Voltage - Power supply: 2.9V to 18V

Current - Output (maximum value) : -

Operating temperature: 0°C to 70°C

Current - Power supply: 2 mA

Installation type: Surface mount type

Package/Shell: 24-SSOP


Application scenarios

LTC4229CG is widely used in the following scenarios:

Redundant power supply

Power retention

High availability systems and servers

Telecommunications and network infrastructure

Power priority sorter


Associated Products

Model

Brand

Package

Quantity

Describe

LTC4229IUFD

ADI

QFN-24

3000

Ideal diode and hot-swappable controller, 1-channel universal 24-QFN

LTC4229CUFD

ADI

QFN-24

3000

Ideal diode and hot-swappable controller, 1-channel universal 24-QFN

LTC4229IG

ADI

SSOP-24

3000

Ideal diode and hot-swappable controller, 1-channel universal 24-SSOP

LTC4450AV

ADI

LQFN-16

3000

18V, 12A ideal diode ORing controller N-channel 1:1 16-LQFN

LTC4451AV

ADI

LQFN-16

3000

40V, 7A ideal diode ORing controller N-channel 1:1 16-LQFN

LT4423AV

ADI

LDFN-10

3000

28V, 2A ideal diode and load switch

LT4422AV

ADI

LDFN-10

3000

28V, 4A ideal diode ORing controller P-channel 1:1 10-LDFN

LTC4412IS6

ADI

TSOT-23-6

2000

Low Loss PowerPath™ Controller in ThinSOT

MAX40203AUK

Maxim

SOT-23-5

10000

OR Controller Source Selector Switch P Channel 1:1 SOT-23-5

MAX16141AADA/VY

Maxim

TQFN-16

3000

3.5V to 36V ideal diode controller with voltage and current circuit breakers
