The LTC4229IUFD provides an ideal diode and Hot Swap™ functionality for a power rail by controlling two external N-channel MOSFETs. The LTC4229IUFD can adjust the forward voltage drop across the external MOSFET to ensure smooth current transfer in diode "or" applications. The ideal diode is quickly connected to reduce the load voltage drop during power switching.

Product Features

The main features of LTC4229IUFD include:

Ideal diodes for redundant power supplies and surge current control

Low-loss alternatives to power Schottky diodes

It can protect the output voltage from the influence of input undervoltage

Hot-swapping operations are allowed to be safely performed on the live backplane

Operating range: 2.9V to 18V

Controllable back-to-back N-channel MOSFETs

The peak fault current can be limited within a time of ≤1μs

Adjustable current limit value with return

Adjustable start-up and current-limiting fault delay

The ideal diode on-off time of 0.5μs

Under-voltage and over-voltage protection

Status, faults and good power output

After a failure occurs, perform a locking or automatic retry operation (which can be selected through pins).

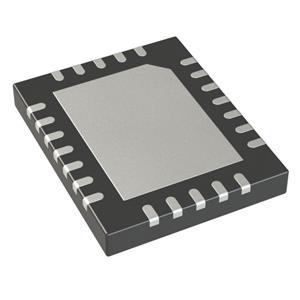

24-pin 4mm x 5mm QFN package

Application field

The LTC4229IUFD is suitable for a variety of high-availability systems, such as redundant power supplies, power retention, high-availability systems and servers, telecommunications and network infrastructure, etc.
