Shenzhen  Mingjiada Electronics Co., Ltd.

Service Telephone:86-755-83294757

Product Classification

AI Processor Chip

Resistor network

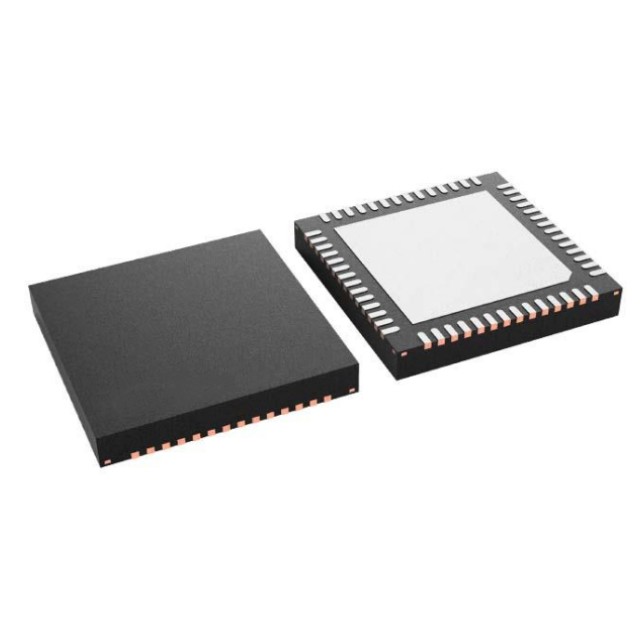

For picture reference, please see the specifications
< >

Commodity Model:AFE5401RGCTEP

Trade Name:Analog Front End

Brand:TI

Particular Year:25+

Package:VQFN-64

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
AFE5401RGCTEP
Package
VQFN-64
Describe
Quad-Channel Analog Front-End for Automotive Radar Baseband Receiver

Product Description

AFE5401RGCTEP is an analog front-end (AFE), targeting applications where the level of integration is critical. The device includes four channels, with each channel comprising a low-noise amplifier (LNA), a programmable equalizer (EQ), a programmable gain amplifier (PGA), and an antialias filter followed by a high-speed, 12-bit, analog-to-digital converter (ADC) at 25MSPS per channel.


Feature Of AFE5401RGCTEP

Integrated Analog Front-End Includes:

Quad LNA, Equalizer, PGA, Antialiasing Filter, and ADC

Input-Referred Noise with 30dB PGA Gain:

2.9nV/√ Hz for 15dB LNA Gain

2.0nV/√ Hz for 18dB LNA Gain with HIGH_POW_LNA Mode

Simultaneous Sampling Across Channels

Programmable LNA Gain: 12dB, 15dB, 16.5dB, and 18dB

Programmable Equalizer Modes

Built-In Diagnostic Modes

Temperature Sensor

Programmable-Gain Amplifiers (PGAs):

0dB to 30dB in 3dB Steps

Programmable, Third-Order, Antialiasing Filter:

7MHz, 8MHz, 10.5MHz, and 12MHz

Analog-to-Digital Converter (ADC):

Quad Channel, 12 Bits, 25MSPS per Channel

No External Decoupling Required for References

Parallel CMOS Outputs

64-mW Total Core Power per Channel at 25MSPS per Channel

Supplies: 1.8V and 3.3V

Package: 9mm × 9mm VQFN-64

Device Temperature: –40°C to 125°C Ambient Operating Temperature Range

Supports defense, aerospace, and medical applications

Controlled baseline

One assembly and test site

One fabrication site

Extended product life cycle

Product traceability

VID V62/25601


Applications Of AFE5401RGCTEP

Automotive Radar

Data Acquisition

SONAR™
