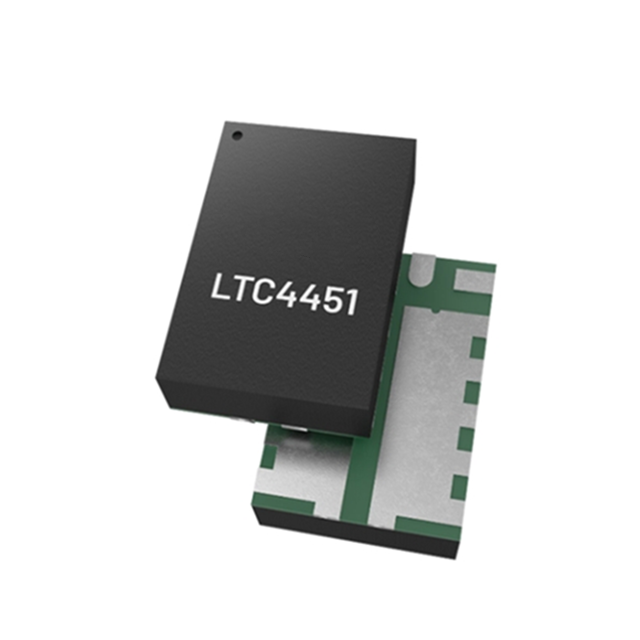

The LTC4451AV is a high-performance Schottky diode alternative that uses an integrated N-channel power MOSFET. This device can easily "ORs" power supply to enhance system reliability and prevent reverse conduction.

The LTC4451AV regulates the forward voltage to 15mV, significantly reducing power loss compared to Schottky diodes. Regulation ensures smooth current transmission in diode-OR applications without oscillation. When the power MOSFET is in the fully enhanced state, the RDS(ON) of the transistor is 21mΩ, the rated forward conduction current is as high as 7A, and the power consumption is 1.34W simultaneously.

Main characteristics

Reduce power consumption by replacing power Schottky diodes without external components

Internal 7A, 21mΩ N-channel MOSFET

15mV regulated forward voltage

Working current: 20μA, turn-off current: 0.8μA

It has a wide input range of 0V to 40V with VCC > 2.75V

Quick startup can minimize voltage drop to the greatest extent

The fast reverse recovery time can minimize the reverse transient current

Smooth switching in diode "or" applications

16-pin, 2mm × 3mm LQFN package

Application field

The LTC4451AV is widely used in various scenarios where high-performance Schottky diodes are needed as substitutes, especially in industrial, medical and consumer electronic portable devices.
