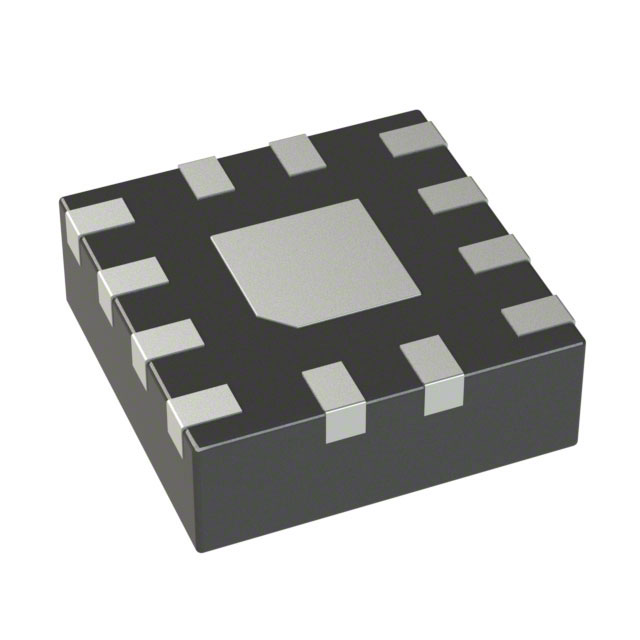

TRF1213RPVR is a very high performance, radio frequency (RF) amplifier optimized for RF applications. This device is excellent for ac-coupled applications that require a single-ended to differential conversion when driving an RF sampling analog-to-digital converter (ADC) such as the high performance AFE7950 or ADC12DJ5200RF. The device combines the functionality of a wide-band gain block and a wide-band passive balun. The on-chip matching components simplify printed circuit board (PCB) implementation and provide the highest performance over the usable bandwidth. The device is fabricated in Texas Instruments’ advanced complementary BiCMOS process and is available in a space-saving, WQFN-FCRLF package.

Feature Of TRF1213RPVR

Single-ended input, differential output

Excellent performance driving RF ADCs

Fixed 14dB gain

Bandwidth (3dB): >14GHz

Gain flatness:

+1.2dB (12GHz)

–1dB (14.8GHz)

OP1dB:

4GHz: 14.4dBm

10GHz: 14.6dBm

OIP3:

4GHz: 34dBm

10GHz: 31dBm

NF:

4GHz: 8.6dB

10GHz: 11.8dB

Gain and phase imbalance: ±0.3dB and ±3º

Power-down feature

5V single-supply operation

Active current: 174mA

Applications Of TRF1213RPVR

RF sampling or GSPS ADC driver

Aerospace and defense

Radar seeker front end

Phased array radar

Military radios

Test and measurement

High-speed digitizers

Vector signal transceiver (VST)

4G/5G wireless BTS
