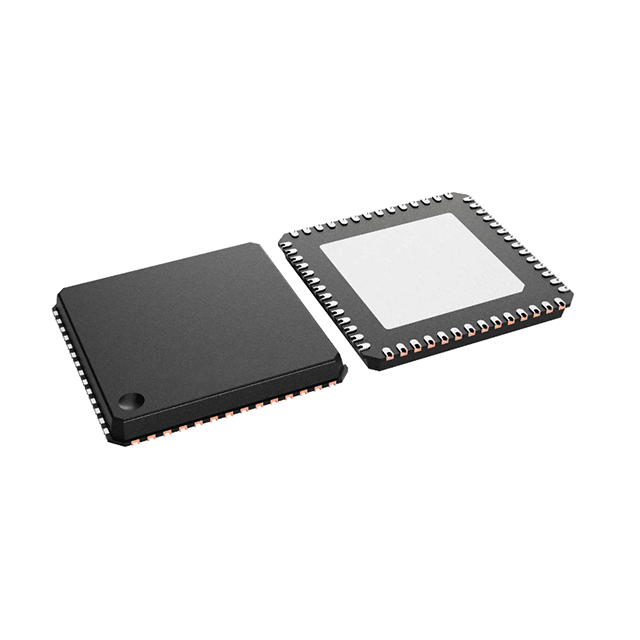

TPS65931211RWERQ1 device provides four flexible multi-phase configurable BUCK regulators with 3.5 A output current per phase, and one additional BUCK regulator with 2 A output current.

Feature

Qualified for automotive applications

AEC-Q100 qualified with the following results:

Device operates from 3 V to 5.5 V input supply

Device temperature grade 1: –40°C to +125°C ambient operating temperature range

Device HBM classification level 2

Device CDM classification level C4A

Functional Safety-Compliant

Developed for functional safety applications

Input supply voltage monitor

Watchdog with selectable trigger / Q&A mode

Two error signal monitors (ESMs) with selectable level / PWM mode

Bit-integrity (CRC) error detection on internal configuration registers and non-volatile memory (NVM)

Low-power consumption

2 µA typical shutdown current

7 µA typical in back up supply only mode

20 µA typical in low power standby mode

Five step-down switched-mode power supply (BUCK) regulators:

0.3 V to 3.34 V output voltage range in 5, 10, or 20-mV steps

Flexible multi-phase capability for four BUCKs: up to 14 A output current from a single rail

Short-circuit and over-current protection

Internal soft-start for in-rush current limitation

2.2 MHz / 4.4 MHz switching frequency

Ability to synchronize to external clock input

1.7 V to 3.3 V output voltage range in bypass mode

One low-dropout (LDO) linear regulator with low-noise performance

1.2 V to 3.3 V output voltage range in 25-mV steps

Configurable power sequence control in non-volatile memory (NVM):

Digital output signals can be included in the power sequences

Configurable handling of safety-relevant errors

Real-time clock (RTC) with alarm and periodic wake-up mechanism

One SPI or two I 2C control interfaces , with second I 2C interface dedicated for Q&A watchdog communication

Applications

Automotive infotainment and digital cluster,navigation systems, telematics, body electronicsand lighting

Advanced driver assistance system (ADAS)

Industrial control and automation
