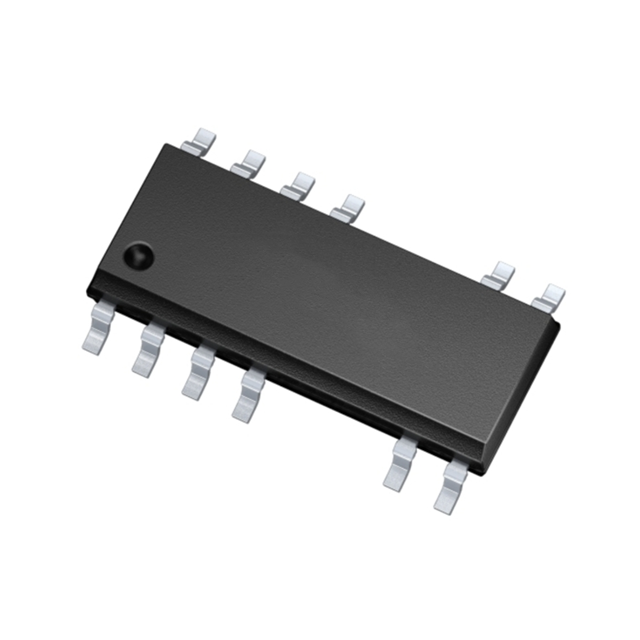

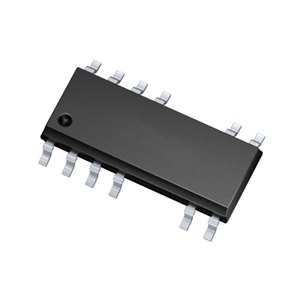

For picture reference, please see the specifications
< >

Commodity Model:ICE5GR4780AG

Trade Name:AC-DC converter

Brand:INFINEON

Particular Year:25+

Package:DSO-12

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
ICE5GR4780AG
Package
DSO-12
Describe
5th generation high performance fixed frequency flyback integrated ics for AC-DC power conversion

Product Description

The ICE5GR4780AG is Infineon's latest 5th generation fixed-frequency CoolSET™ with high performance. It is integrated with the latest generation 800V CoolMOS™ super-junction MOSFET P7 and is packaged in DSO-12.

Its main features include:

Maximum switching frequency of 125kHz, with 800V integrated MOSFET

It adopts a universal wide-range input (85~300VAC) DCM design, with a power output as high as 22W

Overvoltage protection and common source and common grid configuration enable rapid and stable start-up

Optional 3-level entry/exit active burst mode configuration file (optional)

Built-in digital soft start

Period-by-cycle peak current limit

Support DCM and CCM operation with slope compensation

Integrated error amplifier, supporting direct feedback through non-isolated flyback topology

When the load decreases, the digital frequency drops and the efficiency is higher

Adjustable line input overvoltage protection (optional)

Short-circuit protection for VCC and pins to ground

OLP, output short circuit, OTP has hysteresis and VCC overvoltage/undervoltage protection

Automatic restart function after all protections take effect


In addition, the ICE5GR4780AG also supports both non-isolated and isolated topologies, making it suitable for a variety of application scenarios. Its built-in error amplifier and digital frequency modulation function further enhance its efficiency and stability ‌.


The ICE5GR4780AG is widely used in the following scenarios, including:

• Auxiliary power supply suitable for household appliances/white goods, televisions, computers and servers

Blu-ray players, set-top boxes and LCD/LED displays


Associated Products

Model

Brand

Package

Quantity

Describe

ICE5AR0680BZS

INFINEON

DIP-7

2000

5th generation high performance fixed frequency flyback integrated ics for AC-DC power conversion

ICE5GR1680AG

INFINEON

DSO-12

2500

5th generation high performance fixed frequency flyback integrated ics for AC-DC power conversion

ICE5BR4780BZ

INFINEON

DIP-7

2500

5th generation high performance fixed frequency flyback integrated ics for AC-DC power conversion

VIPER06LSTR

ST

SSO-10

10000

Energy saving high voltage converter for direct feedback

LNK6404D

POWER

SO-8

10000

AC/DC Converter 3.5 W (85-265 VAC) CV/CC Switcher

TPS55289QWRYQRQ1

TI

VQFN-HR-21

2000

36V 8A fully integrated buck-boost converter with I²C interface

CYPAP111A3-10SXQT

Cypress

PG-DSO-10

2500

AC/DC Converters CHARGER_ADAPTER

CYPAP212A1-14SXI

INFINEON

DSO-14

1000

Secondary side control primary start controller PG-DSO-14 with X-CAP discharge mode

CYPAP211A1-14SXI

INFINEON

DSO-14

1000

Secondary side control primary start controller PG-DSO-14 with non-X-CAP discharge mode

CYPAP112A3-10SXQ

INFINEON

DSO-10

1000

Primary side start controller PG-DSO-10 with X-CAP mode and pulse transformer feedback
