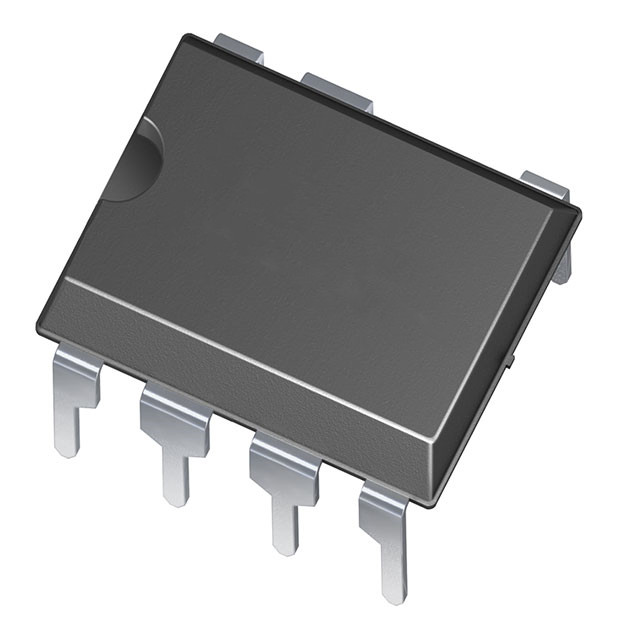

For picture reference, please see the specifications
< >

Commodity Model:ICE5AR0680BZS

Trade Name:AC-DC converter

Brand:INFINEON

Particular Year:25+

Package:DIP-7

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
ICE5AR0680BZS
Package
DIP-7
Describe
5th generation high performance fixed frequency flyback integrated ics for AC-DC power conversion

Product Description

The ICE5AR0680BZS is Infineon 's latest generation of fixed-frequency CoolSET™ products with high performance and integrated 800V CoolMOS™ super junction MOSFET P7 functionality ‌. This product adopts DIP-7 packaging, complies with the JEDEC standard, has a maximum switching frequency of 100kHz, is suitable for DCM design with universal wide-range input (85-300VAC), and has a power output of up to 39W. It has overvoltage protection, common source and common gate configuration, enables fast and stable startup, and supports three levels of optional entry/exit active burst mode profile ‌.


The ICE5AR0680BZS has the following main features:

Maximum switching frequency of 100kHz, equipped with an 800V integrated MOSFET

It adopts a universal wide-range input (85~300VAC) DCM design, with a power output as high as 39W

Overvoltage protection and common source and common grid configuration enable rapid and stable start-up

Optional 3-level entry/exit active burst mode configuration file (optional)

Built-in digital soft start

Period-by-cycle peak current limit

Support DCM and CCM operation with slope compensation

Integrated error amplifier, supporting direct feedback through non-isolated flyback topology

When the load decreases, the digital frequency drops and the efficiency is higher

Short-circuit protection for VCC and pins to ground

OLP, output short circuit, OTP has hysteresis and VCC overvoltage/undervoltage protection

Automatic restart function after all protections take effect


Application field

The ICE5AR0680BZS is suitable for a variety of application fields, including:

Offline auxiliary SMPS suitable for servers, PC power supplies, air conditioners, refrigerators and speakers.

It is applicable to adapters, set-top boxes, water purifiers, TV offline main SMPS, industrial SMPS and POE.
