INA750BIREMR is a voltage output, current sense amplifier with an integrated shunt resistor of 800µΩ. The INA750BIREMR is designed to monitor bidirectional current over a common-mode range of –4V to +110V, independent of the supply voltage. Adjustable gain option assists in optimizing the system dynamic range. The integration of the Kelvin connected shunt resistor with a zero-drift chopped amplifier provides calibration equivalent measurement accuracy, ultra-low temperature drift performance of ±35ppm/°C, and an optimized layout for the sensing resistor.

Feature Of INA750BIREMR

Precision solution with integrated shunt resistor

±35A continuous current at 25°C

±25A continuous current from at 125°C

Shunt resistor: 800µΩ

Shunt inductance: 2.5nH

Wide common-mode voltage range: –4V to +110V

Enhanced PWM rejection optimized for systems subject to switching common-mode voltages

Supports switching frequencies up to 125kHz

Excellent CMRR

160dB DC CMRR

114dB AC CMRR at 50kHz

High measurement accuracy

System Gain error (maximum)

Version A: ±0.35%, ±35ppm/°C drift

Version B: ±1%, ±100ppm/°C drift

Offset voltage (maximum)

Version A: ±15mA, ±315µA/°C drift

Version B: ±125mA, ±625µA/°C drift

Adjustable gain with external resistor divider network:

40mV/A to 800mV/A

Open-drain temperature alert at TJ of 160°C

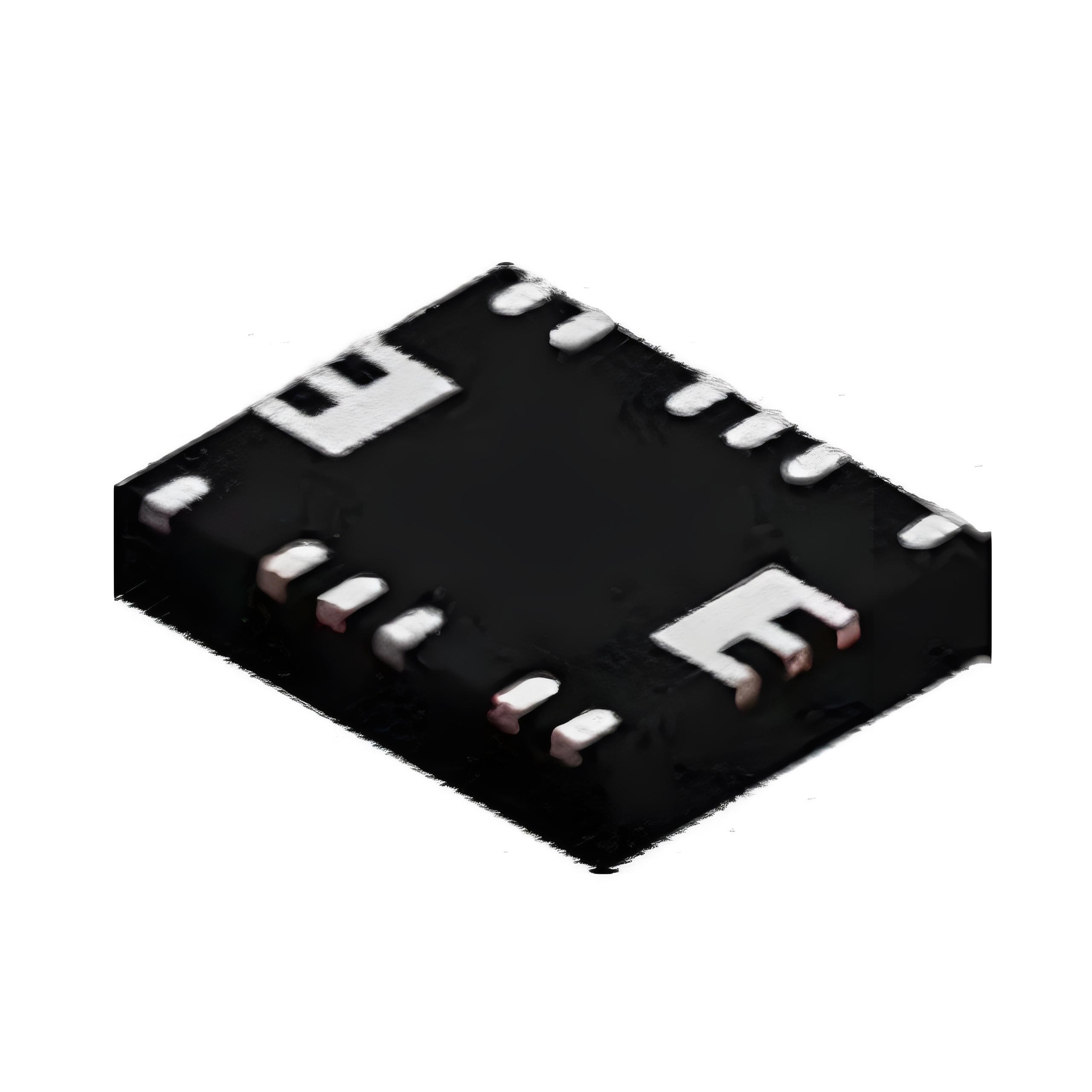

Package options: VQFN-14

Applications Of INA750BIREMR

Motor drives

Solenoids and actuators

Injection molding machine

Cordless power tools

Medical cordless tools

Drone propeller speed control
