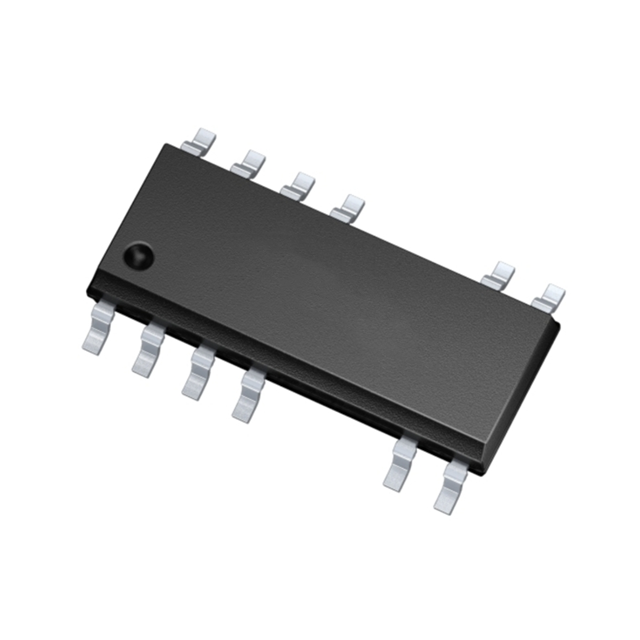

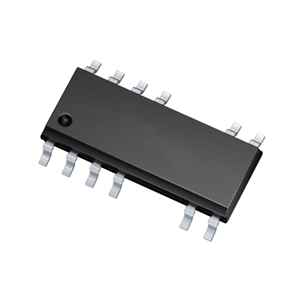

The ICE5GR1680AG is Infineon 's latest 5th generation fixed-frequency CoolSET™ controller that integrates the latest 800V CoolMOS™ super-junction MOSFET P7 in a DSO-12 package ‌‌. This device has the following main features and advantages:

Maximum switching frequency of 125kHz, with 800V integrated MOSFET

It adopts a universal wide-range input (85~300VAC) DCM design, with a power output as high as 27W

Overvoltage protection and common source and common grid configuration enable rapid and stable start-up

Optional 3-level entry/exit active burst mode configuration file (optional)

Built-in digital soft start

Period-by-cycle peak current limit

Support DCM and CCM operation with slope compensation

Integrated error amplifier, supporting direct feedback through non-isolated flyback topology

When the load decreases, the digital frequency drops and the efficiency is higher

Adjustable line input overvoltage protection (optional)

Short-circuit protection for VCC and pins to ground

OLP, output short circuit, OTP has hysteresis and VCC overvoltage/undervoltage protection

Automatic restart function after all protections take effect

The advantages of ICE5GR1680AG include:

Reduce the number of Boms and costs, and feature line input overvoltage protection and error amplifiers

Reduce the digital frequency and improve the efficiency of medium and light loads

The CCM operation is equipped with slope compensation to enhance the output power

Youdaoplaceholder0 Application fields ‌

The ICE5GR1680AG is widely used in the following fields, including:

Offline auxiliary SMPS suitable for servers, PC power supplies, air conditioners, refrigerators and speakers.

It is applicable to adapters, set-top boxes, water purifiers, TV offline main SMPS, industrial SMPS and POE.
