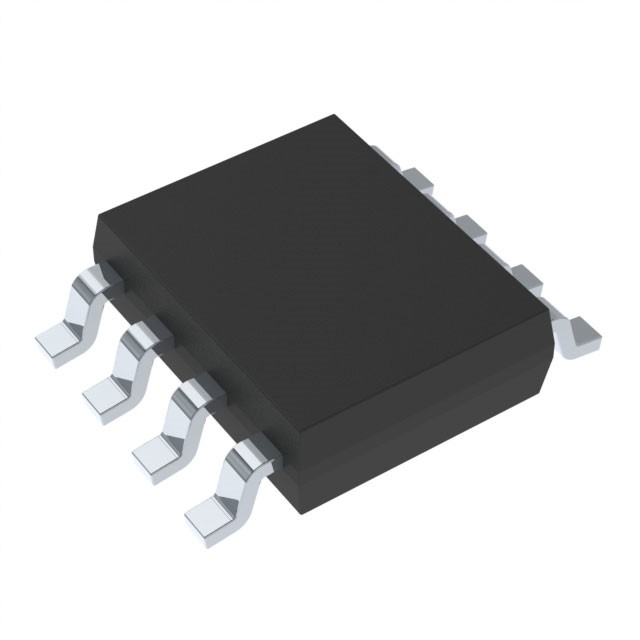

The ADUM320N0WBRZ are dual channel digital isolators based on Analog Devices' iCoupler® technology. These isolation elements combine high-speed, complementary metal-oxide-semiconductor (CMOS) and monolithic air-core transformer technology with excellent performance characteristics and comply with the CISPR 32/EN 55032 Class B 5 Mbps limit. Maximum propagation delay is 10 ns and pulse width distortion is less than 3 ns at an operating voltage of 5 V. Channel matching is 3.0 ns maximum.

The ADUM320N0WBRZ data channels are self-contained, available in a variety of configurations, and rated at 5.7 kV RMS and 3.0 kV RMS. The device operates with supply voltages ranging from 2.25 V to 5.5 V on both sides of the device, providing compatibility with lower voltage systems and enabling voltage conversion across the barrier.

Benefits and Features

High common mode transient immunity: 180 kV/μs typical

High immunity to radiated and conducted noise

Low propagation delay

6.2 ns typical at 5 V operation (10 ns maximum)

Low dynamic power consumption, <1.65 mA/ch at 1 Mbps

2.25 V to 5.5 V level transition

150 Mbps maximum guaranteed data rate

High-temperature operation: 125°C

Safety and regulatory approvals

UL Listed to UL1577

3000 V rms (SOIC_N)

VDE Certificate of Conformity

VIORM = 636 V peak (SOIC_N)

CSA Component Certification to IEC 62368-1 and IEC 61010-1

TÜV SÜD component certification according to EN 62368-1 standard

CQC component certification to GB4943.1-2022

±8 kV IEC 61000-4-2 ESD protection across isolation barriers

±4 kV HBM ESD protection on input/output pins

Fail-safe high (N1) or low (N0) option

SOIC_N Backward compatible

Certified to AEC-Q100 for automotive applications

Operating temperature range Operating temperature range: -40°C to +125°C

Available in 8-lead, narrow-body, RoHS-compliant, standard small-form-factor SOIC_N package

Product Applications

Inverters

Power supplies

Industrial fieldbus isolation

PWM Controller Signal Isolation

General Purpose Multi-Channel Isolation
