The 4DIR2401H four-channel digital isolator (with 2 forward channels) provides robust, reinforced isolation for high-voltage applications. Four data channels simplify high power density designs and increase system efficiency with low power consumption. 4DIR2401H features a wide supply voltage range, active high output enable, and default high output state, making it ideally suited for industrial communication interfaces that require reinforced isolation.

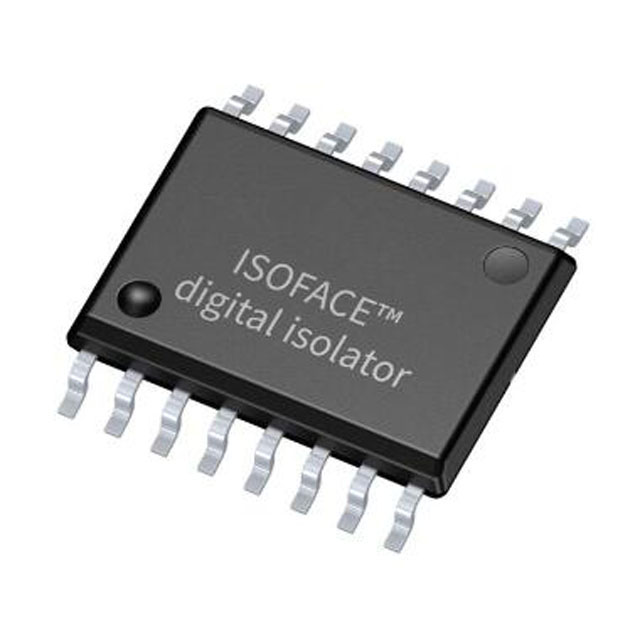

4DIR2401H: Four-Channel Digital Isolator in DSO-16 Wide-Body Package

Basic Information:

Model: 4DIR2401H

Package: PG-DSO-16

Type: Digital Isolator

Technology: Magnetic Coupling

Type: SPI

Isolated Power Supply: None

Number of channels: 4

Inputs - Side 1/Side 2: 2/2

Channel Type: Bidirectional

Voltage - Isolated: 5700Vrms

Common Mode Transient Immunity (min): 100kV/µs

Data Rate: 40Mbps

Propagation Delay tpLH / tpHL (max): 26ns, 26ns

Pulse Width Distortion (max): 3ns

Rise / Fall Time (typical): 4ns, 4ns (max)

Voltage - Supply: 2.7V ~ 6.5V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

Package/Shell: 16-SOIC (0.295’, 7.50mm Width)

Supplier Device Package: PG-DSO-16-46

4DIR2401H Applications:

Telecommunications

Server

Industrial SMPS

Electric Vehicle Charging

Medical Equipment

Industrial Communications
