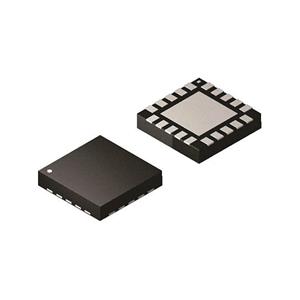

ADL5580BCCZ is a high performance, single-ended or differential amplifier with 10 dB of voltage gain, optimized for applications spanning from dc to 10.0 GHz.

Feature

−3 dB bandwidth: 10.0 GHz

Preset 10 dB gain, can be reduced by adding external resistors

Differential or single-ended input to differential output

Internally dc-coupled inputs and outputs

Input voltage noise (NSD, RTI): 2.25 nV/√Hz at 100 MHz

Low noise input stage: 11.3 dB noise figure at 1 GHz

Low distortion with +5.0 V and −1.8 V supplies and 1.4 V p-p

output differential with a 50 Ω||1 pF load differential

2 GHz: −59.4 dBc (HD2), −54.3 dBc (HD3), −68.2 dBc (IMD3)

6 GHz: −66 dBc (HD2), −88.1 dBc (HD3), −48.3 dBc (IMD3)

276 mA positive supply current at 5.0 V typical

−224 mA negative supply current at −1.8 V typical

Power disable

Applications

Instrumentation and defense applications
